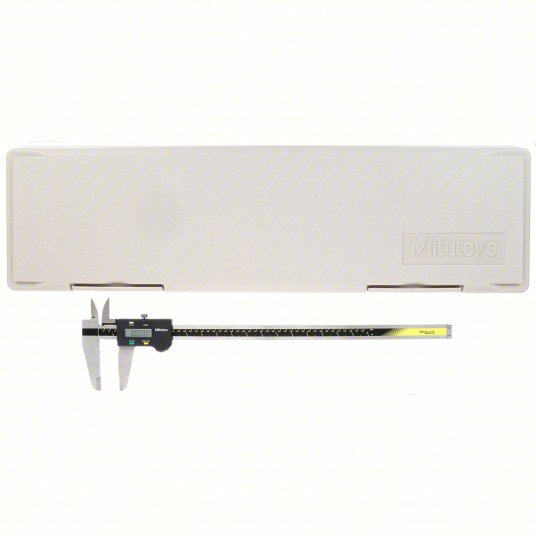

Mitutoyo 500-505-10 Long Range Digital Caliper 0 in to 18 in/0 to 450 mm Range, ±0.002 in Accuracy, Cabled

UPC: 756381400686 | Harmonization (Schedule B): 9017.30.4000

Original price $1,106.19 - Original price $1,106.19
Original price
$1,106.19 - $1,106.19
Current price $1,106.19

The Mitutoyo 500-505-10 Long Range Digital Caliper offers precise measurements with an impressive range of 0 to 18 inches (0 to 450 mm). With an accuracy of ±0.002 inches, it is perfect for professionals and experts who require reliable and accurate measurements. The cabled design allows for continuous use without the need for battery changes.

Caliper Grouping Digital Caliper
Resolution 0.0005 in/0.01 mm
Accuracy +/-0.002 in
Features Without Thumb Roller
Caliper Material Stainless Steel
IP Rating Not Rated
Caliper Range 0-18 in /0-450mm
SPC Output Yes
Long Form Calibration Certificate No
Absolute Positioning Yes
Item Long Range Digital Caliper
Minimum Measurement - Inch 0 in
Coolant Resistant No
Repeatability 0.0005 in/0.01 mm
Graduations - Lower Scale 0 in
Compatible SPC Cable Mfr. No. 959149; Mfr. No. 959150
Case Type Plastic Case
Data Output Connection Type Digimatic
Maximum Measurement - mm 450 mm
Functions Origin-Set, Zero, Data Output, Inch/mm, Alarm: Low Voltage, Counting Value Composition Error
Jaw Actuation Type Slide
Display Type LCD
Maximum Measurement - Inch 18 in
Includes Case Yes
Linear Encoder Type Electrostatic Capacitance
Jaw Shape Standard
Measurements Outside, Inside, Step
Left-Handed Operation No
Jaw Material Stainless Steel
Includes Battery Yes
Water Resistant No
Graduations - Upper Scale 18 in
Dust Resistant Yes
Data Output Type Cabled
Range 0 in to 18 in, 0 to 450 mm
With Locking Nut Yes
Included Certification Certificate of Inspection
Minimum Measurement - Fractional Inch 0 in
Measures Step Yes
Minimum Measurement - mm 0 mm
