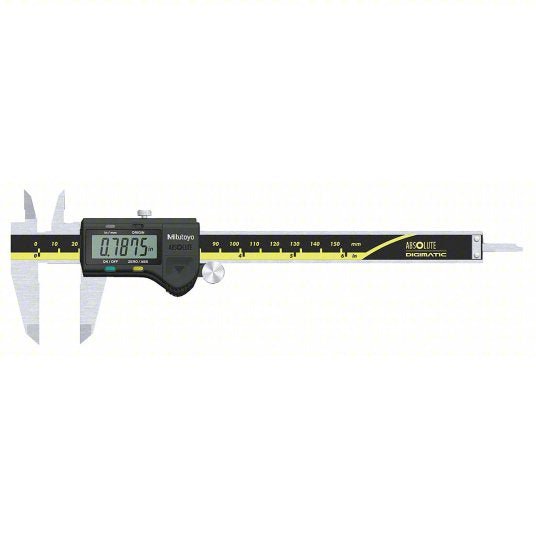

Mitutoyo 500-171-30 4-Way Digital Caliper 0 in to 6 in/0 to 150 mm Range, ±0.001 in Accuracy, Cabled, 4-Way

UPC: | Harmonization / Schedule B : 9017.30.4000

Country of Origin: Japan | Shipping Weight: 0.74 lbs

$275.87 - $275.87
$275.87
$275.87 - $275.87
$275.87

The Mitutoyo 500-171-30 4-Way Digital Caliper offers precise measurements from 0 to 6 inches (0 to 150 mm) with an accuracy of ±0.001 inches. Its cabled design ensures reliable data transfer, while the 4-way measurement capability allows for versatile use in inside, outside, depth, and step measurements. Ideal for professionals requiring consistent and accurate dimensional inspection.

Caliper Material Stainless Steel
Caliper Range 0-6 in /0-150mm
Accuracy +/-0.001 in
SPC Output Yes
Resolution 0.0005 in/0.01 mm
IP Rating Not Rated
Absolute Positioning Yes
Features Rolling Thumb Wheel, Control Buttons on Face, Zero, On/Off and Inch/mm, Absolute Scales
Long Form Calibration Certificate No
Caliper Grouping Digital Caliper
Jaw Material Stainless Steel
Includes Battery Yes
Measurements 4-Way
Included Certification Certificate of Inspection
Data Output Type Cabled
Graduations - Lower Scale 0 in
Graduations - Upper Scale 6 in
Measures Step Yes
Minimum Measurement - Inch 0 in
Minimum Measurement - mm 0 mm
Dust Resistant Yes
Functions Origin-Set, Zero, Data Output, Inch/mm, Alarm: Low Voltage, Counting Value Composition Error
Minimum Measurement - Fractional Inch 0 in
Maximum Measurement - Inch 6 in
Compatible SPC Cable Mfr. No. 959149; Mfr. No. 959150
Linear Encoder Type Electrostatic Capacitance
Left-Handed Operation No
Coolant Resistant No
Maximum Measurement - mm 150 mm

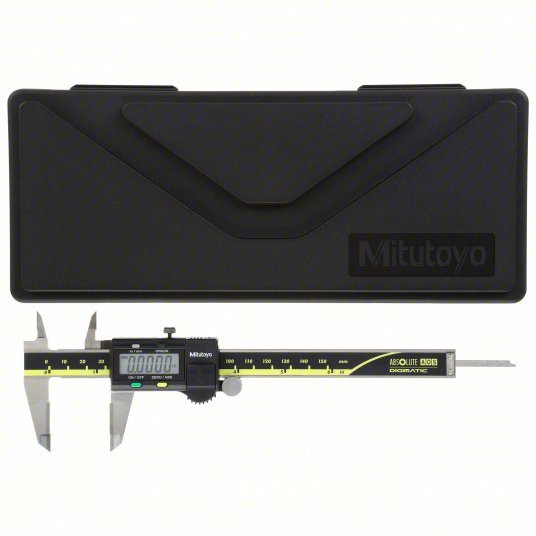

Includes Case Yes
Display Type LCD
Range 0 in to 6 in, 0 to 150 mm
With Locking Nut Yes
Repeatability 0.0005 in/0.01 mm
Jaw Actuation Type Thumb Wheel
Data Output Connection Type Digimatic
Water Resistant No
Case Type Plastic Case
Jaw Shape Standard
