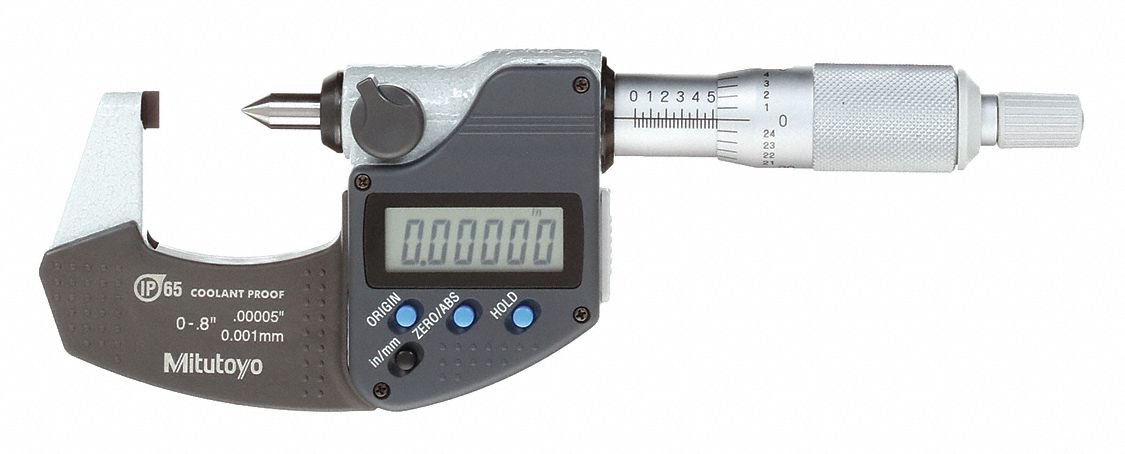

Mitutoyo 342-371-32 Digital Crimp Height Micrometer: 0 in to 0.8 in /0 mm to 20 mm, Digital, Cabled, IP65

Mitutoyo 342-371-32 Digital Crimp Height Micrometer: 0 in to 0.8 in /0 mm to 20 mm, Digital, Cabled, IP65

UPC: 603908386216 | Harmonization / Schedule B : 9017.30.4000

Country of Origin: Japan | Shipping Weight: 1 lbs

$766.37 - $766.37
$766.37
$766.37 - $766.37
$766.37

Digital Crimp Height Micrometer, Range 0 in to 0.8 in, 0 to 20 mm, Resolution 0.00005 in, Accuracy +/-0.00015 in, IP Rating IP65, SPC Output Yes, Data Output Type Cabled, Long Form Calibration Certificate No, Anvil Shape Blade, Anvil Size 0.020 in, Coolant Resistant Yes, Dimension Type Inch/Metric, Operation Type Digital, Thimble Type Ratchet, Anvil Material Steel, Battery Size SR44, Case Included Yes, Case Type Case

Resolution 0.00005"/0.001mm
Range 0 to 0.8"/0 to 20mm
Operation Digital
Features IP54/65 Water/Dust Protection, Measures the Height of Crimp Contacts
Includes (1) Battery (SR44), (1) SPC Output, (1) Fitted Plastic Case
Spindle Point
Anvil Blade
Thimble Ratchet
Lock Nut Type Lever
IP Rating IP65
Anvil Material Steel
Certification Certificate of Inspection
Rotating Spindle (Yes/No) Yes
Spindle Material Steel
SPC Output Yes
Long Form Calibration Certificate No
Case Included Yes
Minimum Measurement - Inch 0 in
Included Certification Certificate of Inspection
Minimum Measurement - mm 0 mm
Display Type LCD
Compatible Data Output Cable Mfr. No. 05CZA662, Mfr. No. 05CZA663, Mfr. No. 937387, Mfr. No. 965013
Includes Battery Yes
Maximum Measurement - mm 20 mm
Anvil Shape Blade
Data Output Type Cabled
Case Type Case
Operation Type Digital
Thimble Type Ratchet
Coolant Resistant Yes
Accuracy +/-0.00015 in
Maximum Measurement - Inch 0.8 in
Inches Measured - Minimum 0 in
Millimeters Measured - Minimum 0 mm
Millimeters Measured - Maximum 20 mm
Inches Measured - Maximum 0.8 in
Spindle Shape Point
Rotating Spindle Yes
Country of Origin Japan
