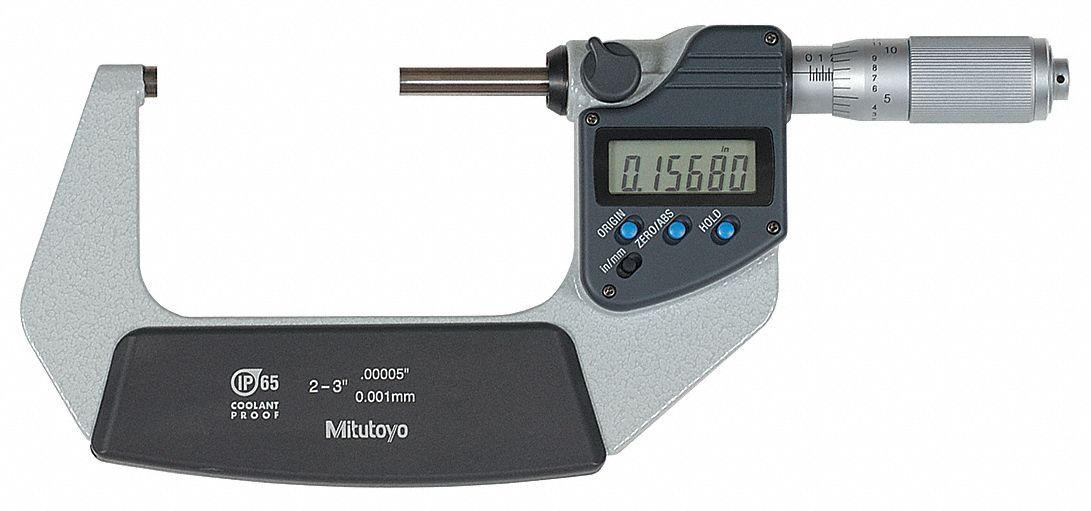

Mitutoyo 293-346-32CAL Digital Outside Micrometer, 2 in to 3 in /76.2 mm to 101.6 mm, Inch/Metric, IP65

Mitutoyo 293-346-32CAL Digital Outside Micrometer, 2 in to 3 in /76.2 mm to 101.6 mm, Inch/Metric, IP65

UPC: | Harmonization / Schedule B : 9017.30.4000

Country of Origin: Japan | Shipping Weight: 1.95 lbs

$801.14 - $801.14
$801.14
$801.14 - $801.14
$801.14

IP65 Digital Outside Micrometer, Range 2 in to 3 in, 50.8 to 76.2 mm, Resolution 0.00005 in/0.001 mm, Accuracy +/- 0.0001 in, IP Rating IP65, SPC Output Yes, Data Output Type Cabled, Long Form Calibration Certificate Yes, Coolant Resistant Yes, Dimension Type Inch/Metric, Included Certification Certificate of Inspection, Operation Type Digital, Thimble Type Ratchet, Anvil Material Carbide, Anvil Shape Flat, Battery Size SR44, Case Included Yes, Case Type Plastic

Resolution 0.00005"/0.001mm
Range 2 to 3"/50.8 to 76.2mm
Features IP65 Protection Level, Enabling Use in Environments Exposed to Cutting Oil, Measurement Data Output Function is Available with A Water-Resistant Connection Cable, Auto Power ON/OFF Function, A Nonslip Surface is Employed for The Frame Cover and Surface Panel to Achieve Stable Handheld Measurement
Includes (1) Battery (SR44), (1) Standard Bar, (1) Fitted Plastic Case
Anvil Flat
Thimble Ratchet
Long Form Calibration Certificate No
Spindle Material Carbide Tipped
Anvil Material Carbide
SPC Output Yes
IP Rating IP65
Maximum Measurement - Inch 3 in
Case Type Plastic
Minimum Measurement - Inch 2 in
Anvil Shape Flat
Thimble Type Ratchet
Includes Battery Yes
Maximum Measurement - mm 76.2 mm
Functions Automatic Power On/Off, Data Hold, Origin-Set, Zero-Setting
Minimum Measurement - mm 50.8 mm
Operation Type Digital
Case Included Yes
Accuracy +/- 0.0001 in
Coolant Resistant Yes
Included Certification Certificate of Inspection
Display Type LCD
Spindle Shape Flat
Millimeters Measured - Maximum 101.6 mm
Millimeters Measured - Minimum 76.2 mm
Frame Material Iron
Data Output Type Cabled
Rotating Spindle Yes
Inches Measured - Maximum 3 in
Inches Measured - Minimum 2 in
Country of Origin Japan
