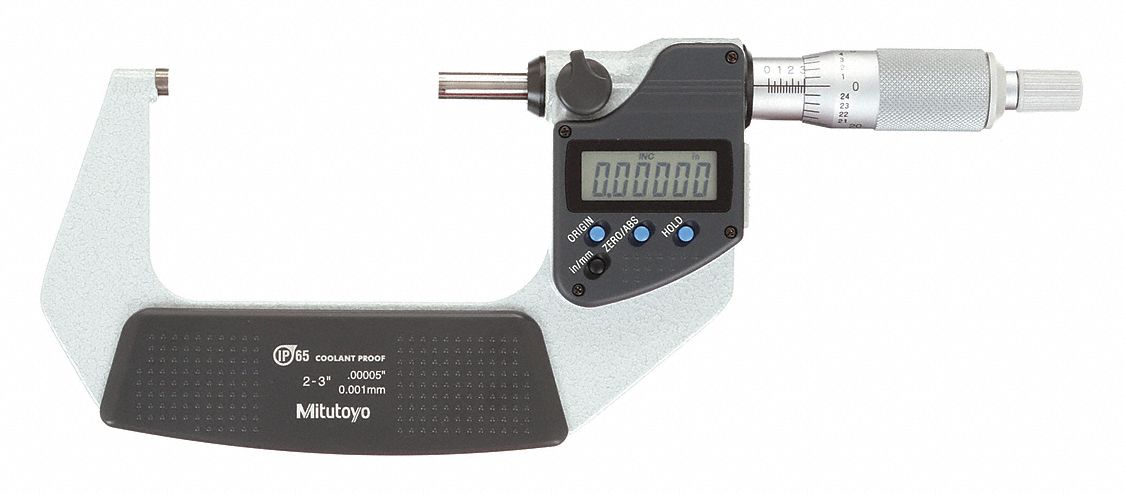

Mitutoyo 293-332-32 Digital Outside Micrometer, 2 in to 3 in /0 mm to 25.4 mm, Inch/Metric, IP65

Mitutoyo 293-332-32 Digital Outside Micrometer, 2 in to 3 in /0 mm to 25.4 mm, Inch/Metric, IP65

UPC: 603908358732 | Harmonization / Schedule B : 9017.30.4000

Country of Origin: Japan | Shipping Weight: 1.9 lbs

$573.41 - $573.41
$573.41
$573.41 - $573.41
$573.41

The MITUTOYO 293-332-30 Digital Micrometer is the ideal tool for measuring the accuracy of workpieces in a variety of industries. With an IP65 protection level, this micrometer is designed to be used in environments exposed to cutting oil. The measurement data output function allows you to easily record measurements with a water resistant connection cable. You can turn on and off the auto power ON/OFF function by simply pressing a button on the side of the micrometer. The nonslip surface employed on the frame cover and surface panel ensures that you have a stable handheld measurement experience. Equip yourself with this reliable MITUTOYO 293-332-30 Digital Micrometer for your next project.

Resolution 0.00005"/0.001mm
Range 2 to 3"/50.8 to 76.2mm
Features IP65 Protection Level, Enabling Use in Environments Exposed to Cutting Oil, Measurement Data Output Function is Available with A Water-Resistant Connection Cable, Auto Power ON/OFF Function, A Nonslip Surface is Employed for The Frame Cover and Surface Panel to Achieve Stable Handheld Measurement
Includes (1) Battery (SR44), (1) Standard Bar, (1) Fitted Plastic Case
Spindle Flat
Anvil Flat
Thimble Ratchet
SPC Output Yes
IP Rating IP65
Long Form Calibration Certificate No
Spindle Material Carbide Tipped
Anvil Material Carbide
Anvil Shape Flat
Case Type Plastic
Minimum Measurement - mm 50.8 mm
Display Type LCD
Functions Automatic Power On/Off, Data Hold, Origin-Set, Zero-Setting
Spindle Shape Flat
Includes Battery Yes
Case Included Yes
Operation Type Digital
Accuracy +/- 0.00005 in
Compatible Data Output Cable Mfr. No. 05CZA662, Mfr. No.05CZA663
Thimble Type Ratchet
Maximum Measurement - mm 76.2 mm
Included Certification Certificate of Inspection
Coolant Resistant Yes
Minimum Measurement - Inch 2 in
Maximum Measurement - Inch 3 in
Millimeters Measured - Maximum 25.4 mm
Inches Measured - Maximum 3 in
Millimeters Measured - Minimum 0 mm
Inches Measured - Minimum 2 in
Rotating Spindle Yes
Frame Material Iron
Country of Origin Japan
