Mitutoyo 188 - 111 Thread Pitch Gauge Set Unified Inch, 30 Leaves, 4 to 42 TPI - KVM Tools Inc.KV1ARB3

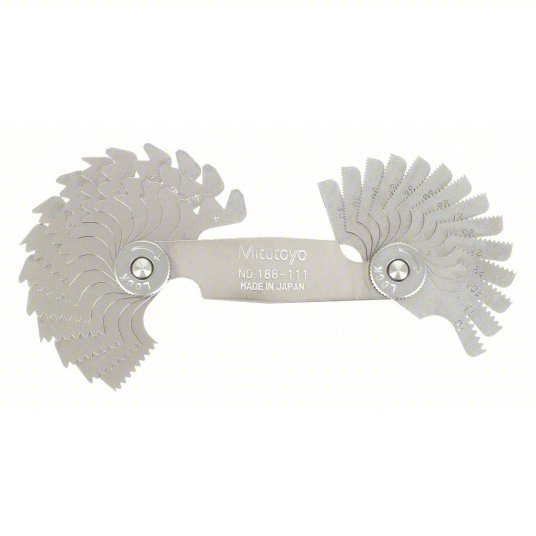

Mitutoyo 188-111 Thread Pitch Gauge Set Unified Inch, 30 Leaves, 4 to 42 TPI

UPC: 603908057512 | Harmonization / Schedule B : 9017.30.8000

Country of Origin: Japan | Shipping Weight: 0.13 lbs

$56.11 - $56.11
$56.11
$56.11 - $56.11
$56.11

This Mitutoyo Thread Pitch Gauge Set is an essential tool for accurately measuring the pitch or lead of a screw thread. It offers a range of 4 to 42 TPI and comes with 30 leaves for precise measurements. Made with precision and expertise from Mitutoyo, the trusted brand in measurement and inspection equipment.

Construction Steel Case With Folding Leaves
Thread Angle (Deg.) 60
Number of Leaves 30
Leaves Narrow Design With Flattened Teeth
Type V, Unified, American National
Range of Pitches per Inch 4 to 42 TPI
Locking Device Yes
Gauge Material Steel
Included Threads per Inch 4 TPI, 4 1/2 TPI, 5 TPI, 5 1/2 TPI, 6 TPI, 7 TPI, 8 TPI, 9 TPI, 10 TPI, 11 TPI, 11 1/2 TPI, 12 TPI, 13 TPI, 14 TPI, 15 TPI, 16 TPI, 18 TPI, 20 TPI, 22 TPI, 24 TPI, 26 TPI, 27 TPI, 28 TPI, 30 TPI, 32 TPI, 34 TPI, 36 TPI, 38 TPI, 40 TPI, 42 TPI
Thread Angle 60 Degrees
Thread Type Unified Inch
Minimum Thread Pitch - mm 4
Maximum Thread Pitch - mm 42
