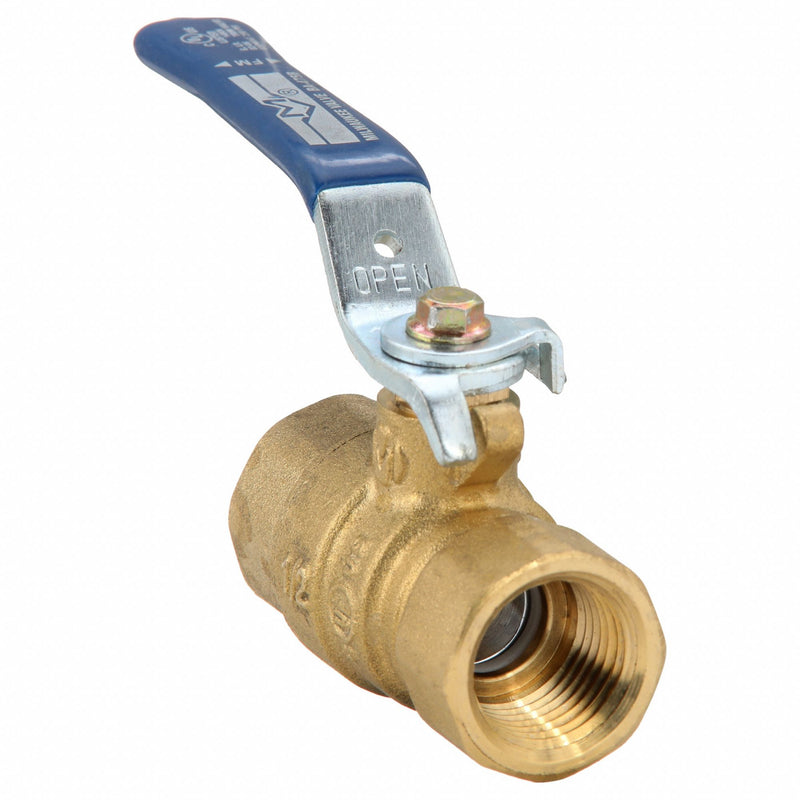

Milwaukee Valve BA-475BMS 1/2 Manual Two-Way Ball Valve, 1/2 in, Brass, Straight, FNPT x FNPT, Full Port Ball Port

Milwaukee Valve BA-475BMS 1/2 Manual Two-Way Ball Valve, 1/2 in, Brass, Straight, FNPT x FNPT, Full Port Ball Port

UPC: 697988581654 | Harmonization / Schedule B : 8481.80.1085

Country of Origin: China | Shipping Weight: 0.51 lbs

$30.92 - $30.92
$30.92
$30.92 - $30.92
$30.92

Manual Two-Way Ball Valve, Body Material Brass, For Media Combustible Gases, Water, Valve Construction Two-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.92 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Locking

Pipe Size 1/2 in
Overall Length 2.25 in
Handle Height 1.46 in
Connection Size - Side 1 1/2 in
Connection Size - Side 2 1/2 in
Handle Length 3.14 in
Nominal Valve Size 1/2 in
Wire Rope Length 2.25 in
Length 2.25 in
Ball Material Chrome-Plated Brass
Body Style Inline
Ball Port Style Full Port
Valve Ways 2-Way
Valve Structure Two-Piece
For Media Combustible Gases, Water
Connection Type FNPT x FNPT
Standards CSA, FM
Handle Material Zinc Plated Steel
Seat Material RPTFE
Temp. Range 0 Degrees to 350 Degrees F
Body Material Brass
Max. Pressure 600 PSI CWP
Stem Material Brass
Ball Valve Product Group Manual
Handle Type Lever with Memory Stop
Stem Type Blowout Resistant
Seal Material PTFE
Type Two Piece
Maximum Pressure - Combustible Gas Not Rated
Color - Valve Handle Blue
Connection Type - Side 1 NPT
Connection Gender - Side 1 Female
Meets UL Flammable Gas and Liquid Standards UL 125, UL 842
3-A Standard Compliance Not Rated
Maximum Pressure - Steam 150 psi
Operating Temperature - Minimum 0 Degrees F
Handle - Locking Locking
Operating Temperature - Maximum 350 Degrees F
Cleaned and Bagged Valve Cleaned and Bagged
Coefficient of Volume (Cv) 18
Connection Gender - Side 2 Female
Connection Type - Side 2 NPT
Vacuum Service Rating -29.92 in Hg
Valve Series BA-475B-MS
Valve Body Style Straight
Valve Construction Two-Piece
Maximum Pressure - Operating 600 psi
Country of Origin China
