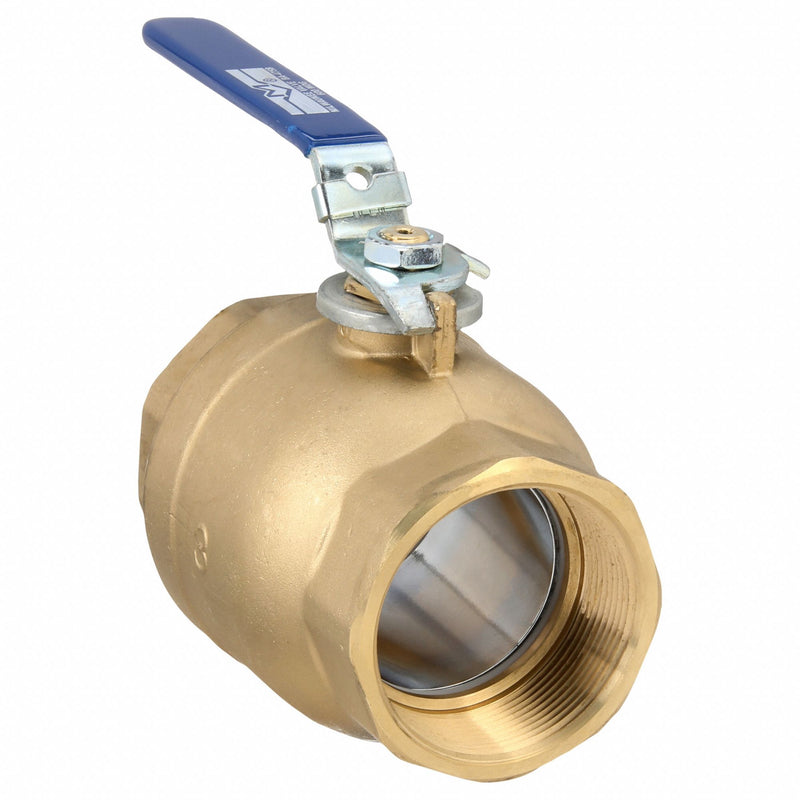

Milwaukee Valve 3" BA-475BLL Manual Two-Way Ball Valve, 3 in, Brass, Straight, FNPT x FNPT, Full Port Ball Port

Milwaukee Valve 3" BA-475BLL Manual Two-Way Ball Valve, 3 in, Brass, Straight, FNPT x FNPT, Full Port Ball Port

UPC: 697988605831 | Harmonization / Schedule B : 8481.80.1085

Country of Origin: China | Shipping Weight: 12.41 lbs

$735.60 - $735.60
$735.60
$735.60 - $735.60
$735.60

Manual Two-Way Ball Valve, Body Material Brass, For Media Combustible Gases, Water, Valve Construction Two-Piece, Nominal Valve Size 3 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.92 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Locking

Pipe Size 3 in
Overall Length 6 in
Connection Size - Side 2 3 in
Handle Height 4.37 in
Connection Size - Side 1 3 in
Nominal Valve Size 3 in
Handle Length 7.87 in
Wire Rope Length 6 in
Length 6 in
MFR # 3" BA-475BLL
Zoro # G2962924
UPC # 697988605831
Country of Origin China
Ball Material Chrome-Plated Brass
Body Style Inline
Ball Port Style Full Port
Valve Ways 2-Way
Valve Structure Two-Piece
For Media Combustible Gases, Water
Connection Type FNPT x FNPT
Stem Material Brass
Seat Material RPTFE
Body Material Brass
Temp. Range 0 Degrees to 400 Degrees F
Handle Type Lever
Ball Valve Product Group Manual
Max. Pressure 600 PSI CWP
Handle Material Zinc-Plated Steel
Stem Type Blowout Resistant
Standards CSA, FM
Seal Material PTFE
Type Two Piece, Locking Handle
Meets UL Flammable Gas and Liquid Standards UL 125, UL 842
3-A Standard Compliance Not Rated
Connection Type - Side 1 NPT
Connection Gender - Side 2 Female
Cleaned and Bagged Valve Cleaned and Bagged
Operating Temperature - Minimum 0 Degrees F
Maximum Pressure - Steam Not Rated
Connection Type - Side 2 NPT
Color - Valve Handle Blue
Vacuum Service Rating -29.92 in Hg
Connection Gender - Side 1 Female
Handle - Locking Locking
Operating Temperature - Maximum 400 Degrees F
Maximum Pressure - Combustible Gas Not Rated
Coefficient of Volume (Cv) 323
Valve Series BA-475B-LL
Valve Body Style Straight
Valve Construction Two-Piece
Maximum Pressure - Operating 600 psi
Country of Origin China (subject to change)
