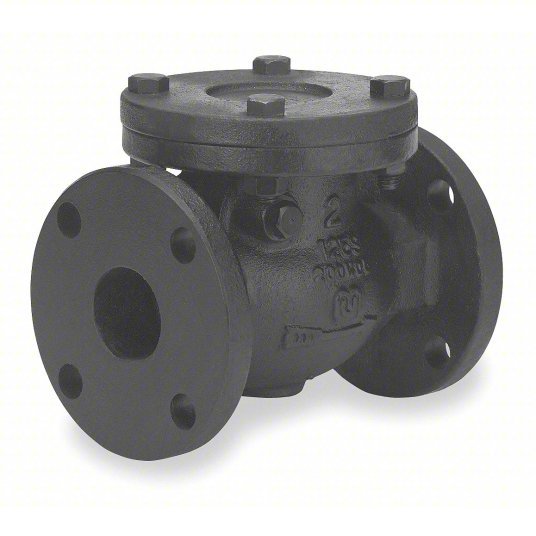

Milwaukee 2974-M 6 Swing Check Valve Single Flow, Inline Swing, Cast Iron, 6 in Pipe/Tube Size, Bronze - KVM Tools Inc.KV1JNL8

Milwaukee 2974-M 6 Swing Check Valve Single Flow, Inline Swing, Cast Iron, 6 in Pipe/Tube Size, Bronze

UPC: 697988580497 | Harmonization / Schedule B : 8481.30.1090

Country of Origin: | Shipping Weight:

$1,257.25 - $1,257.25
$1,257.25
$1,257.25 - $1,257.25
$1,257.25
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Swing, Body Material - Valves Cast Iron, Pipe or Tube Size 6 in, Connection Type Flange x Flange, Cracking Pressure 0.750 to 1.000 psi, Mounting Orientation Horizontal, Vertical, Seal Material Chrome, Cobalt, Max. Temp. - Valves 350 Degrees F, Min. Temp. - Valves -20 Degrees F, Max. Water Pressure - Valves 200 psi @ 150 Degrees F, Max. Steam Pressure - Valves 125 psi WSP, Seat Material Bronze
Body Material Cast iron
Max. Water Pressure 200 psi
Cap to Inlet Center 9 1/2 in
Standards MSS-SP-71 and ASTM B16.1
Body Material - Valves Cast Iron
Max. Temp. 350 Degrees F
Full Flow - Valves Yes
Min. Temp. - Valves -20 Degrees F
Mounting Position Vertical or Horizontal
Max. Steam Pressure 125 psi WSP
Item - Check Valves Check Valve
Max. Water Pressure - Valves 200 psi @ 150 Degrees F
Sub-Category Iron
Cracking Pressure - Check Valves 0.750 to 1.000 psi
Item Swing Check Valve
Cracking Pressure 0.75 to 1 psi
Max. Pressure 125 psi SWP - 200 psi WOG
Max. Steam Pressure - Valves 125 psi WSP
Max. Temp. - Valves 350 Degrees F
Application - Valves General Purpose
Material of Construction cast iron
Connection Type - Check Valves Flange x Flange
Flow Design Single
Mechanism and Body Design Inline Swing
Mounting Orientation - Check Valves Horizontal, Vertical
Seat Material - Check Valves Bronze
Seal Material - Check Valves Chrome, Cobalt
Flow - Valves 1,440 gpm
Seat Material Bronze
Seal Material Chrome, Cobalt
Mounting Orientation Horizontal, Vertical
Valve Body Material Cast Iron
