| Item |
TIG Welder |
| Series |
Syncrowave(R) |
| Phase |
1 |
| Input Voltage |
110/115/120/208/220/230/240V AC |
| Function |
AC/DC TIG, DC Stick, Flux-Cored, MIG, Pulsed TIG |
| Rated Output |
125A @ 15V |
| Amps AC |
5-210ADC |
| Aluminum - Material Thickness |
0.020 in to 1/4 in |
| Features |
5A TIG Capability, 6010 Stick Electrode Capability, Auto-Set(TM) MIG, Built-In Running Gear, Fan-on-Demand(TM),Heavy Duty Foot control, Lowe Power Draw, Pro-Set(TM) TIG |
| Welding Processes |
DC TIG, Flux Core, MIG, Stick |
| Application |
Automotive Repair, Hobbyist, Light Manufacturing, Light Metal Fabrication, Maintenance/Repair Operations, Vocational Training |
| Output Range |
5 to 210A DC |
| Mild Steel - Material Thickness |
0.020 in to 1/4 in |
| Duty Cycle |
60% |
| Includes |

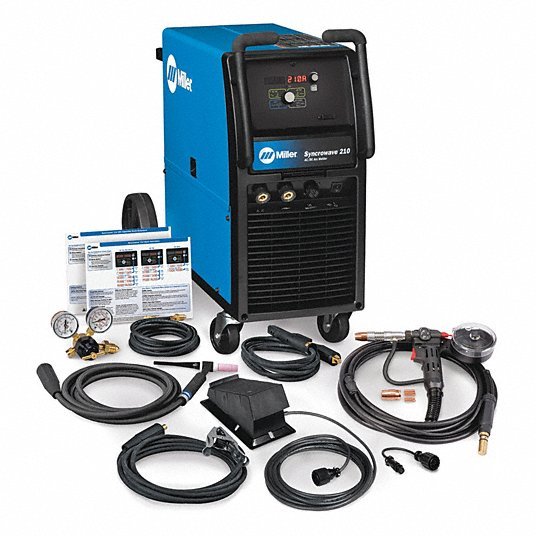

10 ft (3 m) primary cord with MVP(TM) plugs for 120 V (219261) and 240 V (219258), 12 ft (3.8 m) stick electrode holder with Dinse style connector, 12 ft (3.8 m) Weldcraft(TM) A-150 TIG torch with Dinse style connector, 12 ft (3.8 m) work cable with clamp and Dinse style connector, 4-Pin to 14-pin connector, Quick Reference Guide, Regulator/flow gauge and gas hose, RFCS-14 HD remote foot control, Spoolmate(TM) 150 Series spool gun (#301 272), Syncrowave(R) 210 |
| OCV |
47 |
| Input (Amps) |
11.9 |
| Standards |
ISO 9001 |
| Hz |
50/60 |
| Remote Connection Type |
14-Pin (Miller) |
| Welding Mode |
CC/CV |
| For Minimum Material Thickness |
0.020 in (Aluminum), 0.020 in (Steel) |
| Open Circuit Voltage |
47V DC |
| Remote Control |
Foot Control Included |
| For Maximum Material Thickness |
1/4 in (Aluminum), 1/4 in (Steel) |
| Rated Output at Duty Cycle (TIG) |
114 A @ 60%, 125 A @ 60%, 90 A @ 60%, 95 A @ 60% |
| TIG Arc Start Feature |
High Frequency Start |
| Weight |
144.5 lb |
| Stick Welding Output @ Duty Cycle |
70 A @ 22.8 V, 60% (115 V), 90 A @ 23.6 V, 60% (230 V) |
| Max. Amperage Range (TIG) |
150 A - 300 A |
| Kit Includes |
Flow Gauge/Regulator & Gas Hose, Foot Control, Spool Gun, Stick Electrode Holder with Cable, TIG Torch, Work Cable with Clamp |
| For Material Type |
Aluminum, Stainless Steel, Steel |
| Color |
Blue |
| Input Voltage (Nominal) |
120V, 208V, 240V |
| Plug Type |
5-15P, 6-50P |
| Welder Kit Type |
Stick/TIG Package w/Foot Control |
| Input Frequency |
50/60 Hz |
| Stick Welding Minimum Output Current |
20 A |
| TIG Welding Minimum Output Current |
5 A |
| Pulse Frequency |
0.1 to 150 pulses/second |
| TIG Welding Output @ Duty Cycle |
114 A @ 14.6 V, 60% (230V AC), 125 A @ 15 V, 60% (230V AC), 90 A @ 13.6 V, 60% (115V AC), 95 A @ 13.8 V, 60% (115V AC) |
| Max. Input Current |
20.5 A @ 115V AC (Single-Phase) |
| Power Cord Included |
Yes |
| Stick Welding Maximum Output Current |
150 A |
| Polarity |
AC/DC |
| TIG Welding Maximum Output Current |
210 A |
| Model |
951684 |
| Process |
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW) |
| Welder Type (Merch) |
Stick/TIG Package w/Foot Control |
| Process (Merch) |
GTAW, GTAW-P, SMAW, GMAW, FCAW |
| brand-mfr model |
MILLER ELECTRIC - 951684 |
| Package Quantity |
1 |
