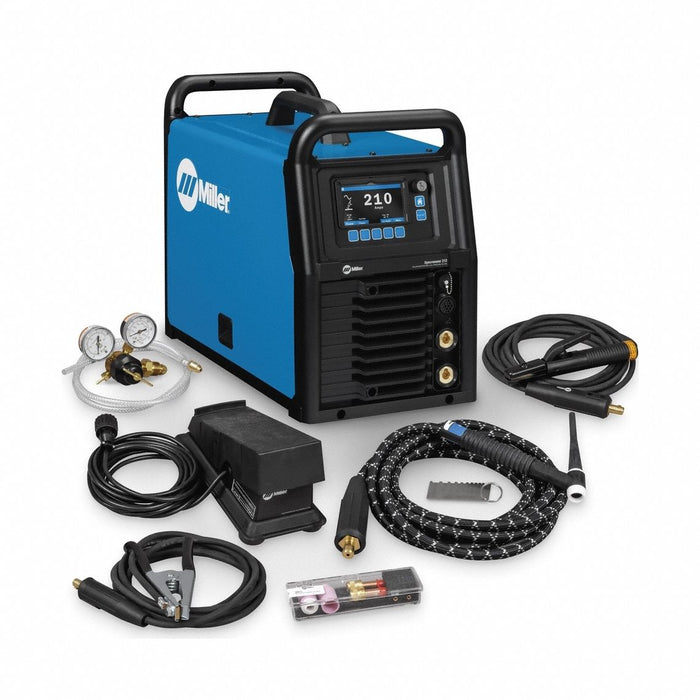

TIG Welder, For Material Type Stainless Steel, Steel, For Maximum Material Thickness 3/8 in (Mild Steel), For Minimum Material Thickness 20 ga (Steel), Input Frequency 50/60 Hz, Max. Input Current 16.3 A @ 240V AC, 18.8 A @ 120V AC, Phase Single, Polarity AC/DC, Series Syncrowave 212, Stick Welding Maximum Output Current 210 A (Single-Phase), Stick Welding Minimum Output Current 30 A (Single-Phase)
| Phase |
Single |
| Polarity |
AC/DC |
| Input Frequency |
50/60 Hz |
| Remote Connection Type |
14-Pin (Miller) |
| Welding Power Source Type |
CC |
| Amperage Stick - Minimum |
30 A |
| Input Voltage |
120/240V AC |
| Open Circuit Voltage |
46V AC/DC |
| Power Cord Included |
Yes |
| Includes |
12.5 ft (3.8 m) Weldcraft(TM) A-150 Tig Torch with 50 mm Flow Thru Dinse-Style Connector (Braided), 15 ft (4.6 m) Work Cable with Clamp, 15 ft Cable with Electrode Holder and Dinse-Style Connector, 5 ft (1.5 m) Gas Hose (Single Reinforced PVC 3/16 in), 6.5 ft (2 m) 120-Volt Power Cord and 6.5 ft (2 m) 240-Volt Power Cord, Flow Gauge Regulator for Argon/Mix (10 - 50 scfh Barbed Bonnet), Heavy-Duty Wired Foot Control with 20 ft Cord and 14-Pin Plug, Material Thickness Gauge, Weldcraft Gas Lens Accessory Kit (Air) |
| Standards |
CSAus, ISO 9001 |
| Rated Output @ Duty Cycle (TIG) |
110 A @ 14.8 V, 60% (120V), 120 A @ 14.8 V, 100% (240V), 130 A @ 15.2 V, 60% (240V), 140 A @ 15.6 V, 30% (120V), 210 A @ 18.4 V, 20% (240V), 90 A @ 13.6 V, 100% (120V) |
| Amperage TIG - Minimum |
20 A |
| Rated Output @ Duty Cycle (Stick) |
100 A @ 24 V, 100% (240V), 120 A @ 24.8 V, 60% (240V), 160 A @ 26.4 V, 20% (240V), 55 A @ 22.2 V, 100% (120V), 70 A @ 22.8 V, 60% (120V), 90 A @ 23.6 V, 30% (120V) |
| Amperage TIG - Maximum |
210 A |
| Maximum Input Current |
16.3 A @ 240V AC, 18.8 A @ 120V AC |
| Amperage Stick - Maximum |
210 A |
| For Material Type |
Stainless Steel, Steel |
| Features |
Auto-Set(TM) Technology, Intuitive Interface LCD Display, Pro-Set(TM) |
| Process |
Stick Welding (SMAW), TIG Welding (GTAW) |
| Plug Type |
5-15P, 6-50P |
| Remote Control |
Foot Control Included |
| TIG Arc Start Feature |
High Frequency Start |
| Application |
Aluminum Welding, Automotive Welding, Car Restoration, Decor/Furniture, Fabrication, Garage/Shop, Metal Art, Off-Road, Stainless Steel, Welding Projects |
| Weight |
54 lb |
| Country of Origin |
United States |
