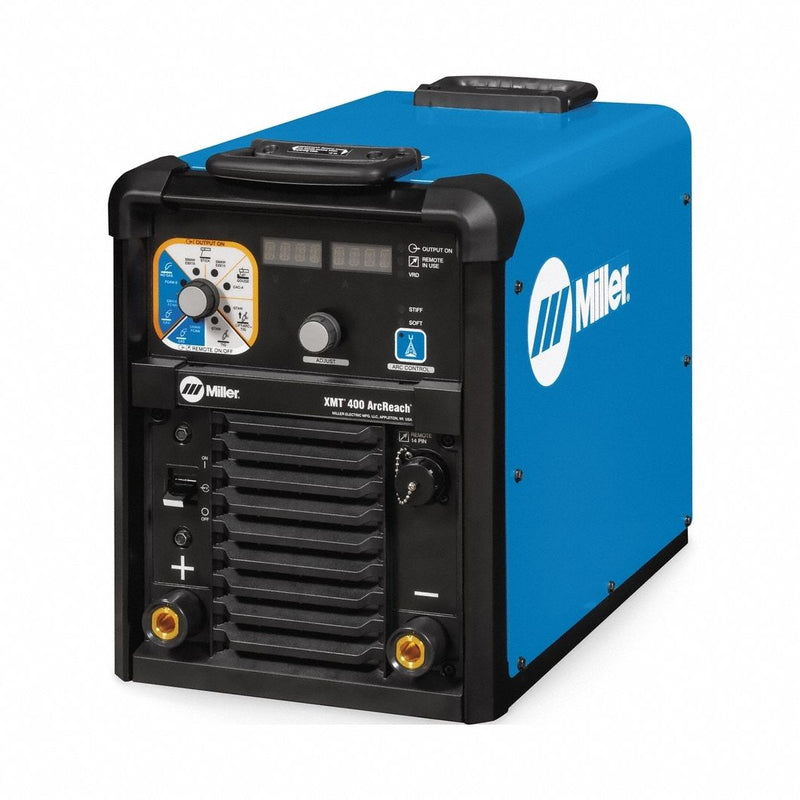

Miller Electric 907865004 ArcReach Multiprocess Welder, Dinse

Miller Electric 907865004 ArcReach Multiprocess Welder, Dinse

UPC: 715959717076 | Harmonization / Schedule B : 8515.39.0040

Country of Origin: United States | Shipping Weight: 78.0 lbs

$11,636.32 - $11,636.32
$11,636.32
$11,636.32 - $11,636.32
$11,636.32

XMT(R) 400 ArcReach(R), Series XMT 400 ArcReach, Input Voltage 208/220/230/240/380/400/440/460/480/575/600V AC, Phase Single/Three, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Regulated Metal Deposition (RMD), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 400 A, TIG Welding Maximum Output Current 425 A

Series XMT
Phase Single/Three
Input Voltage 208/220/230/240/380/400/440/460/480/575/600V AC
Includes Machine Only
Amperage Range 15 to 425 A
Application Construction & Fabrication, Heavy Equipment, Shipbuilding
Features ArcReach(R), Auto-Line(TM), Cable Length Compensation, Adjust While Welding, Control Panel Lockout
Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A), Flux Cored (FCAW), MIG Welding (GMAW), MultiprocessPulsed MIG (GMAW-P), Regulated Metal Deposition (RMD), Stick Welding (SMAW), TIG Welding (GTAW)
Weight 75 lb
Polarity DC
For Material Type Aluminum, Specialty Metals, Stainless Steel, Steel
Welding Mode CC/CV
MIG Welding Minimum Output Current 15 A
Open Circuit Voltage 91 V DC
Color Blue/Black
Input Frequency 50/60 Hz
TIG Welding Maximum Output Current 425 A
Stick Welding Minimum Output Current 15 A
Model XMT 400 ArcReach Dinse
MIG Welding Maximum Output Current 425 A
Enhanced Process Pulsed MIG (GMAW-P), RMD
Stick Welding Maximum Output Current 425 A
TIG Welding Minimum Output Current 15 A
Plug Type Bare Leads
Amperage Stick - Minimum 15 A
Amperage MIG - Minimum 15 A
Amperage Stick - Maximum 400 A
Process Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Pulsed MIG Welding (GMAW-P), Regulated Metal Deposition (RMD), Stick Welding (SMAW), TIG Welding (GTAW)
TIG Arc Start Feature Lift Arc Start
Remote Connection Type 14-Pin (Miller)
Amperage TIG - Maximum 425 A
Welding Power Source Type CC/CV
Amperage TIG - Minimum 15 A
Amperage MIG - Maximum 425 A
Maximum Wire Feed Speed 19.8 m/min
Rated Output @ Duty Cycle (TIG) 350 A @ 24 V, 100%, 400 A @ 26 V, 60%, 425 A @ 27 V, 30%
Rated Output @ Duty Cycle (Stick) 350 A @ 34 V, 100%, 400 A @ 36 V, 60%
Minimum Wire Feed Speed 1.3 m/min
Rated Output @ Duty Cycle (MIG) 350 A @ 31.5 V, 100%, 400 A @ 34 V, 60%, 425 A @ 35.3 V, 30%
Country of Origin United States
