UPC
|
715959669276 |
| Item |

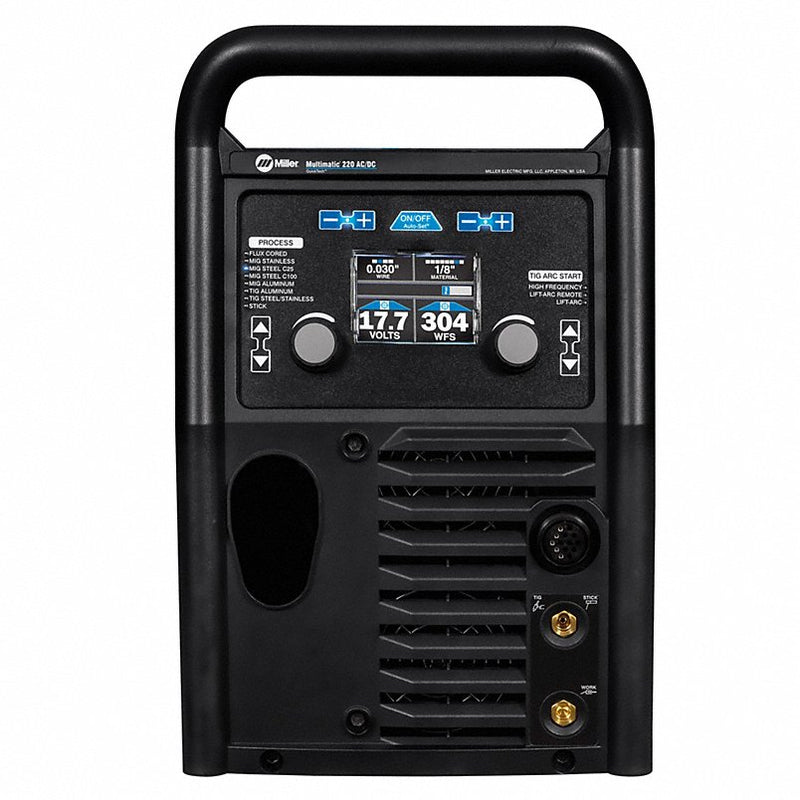

Multiprocess Welder |
| Series |
Multimatic(R) 220 AC/DC |
| Phase |
1 |
| Input Voltage |
120/240V AC |
| Function |
AC/DC TIG, MIG, Stick |
| Rated Output |
240V - 170A @ 21.5V @ 40%, 210A @ 18.4V @ 20%, 200A @ 28.4V @ 15% |
| Mild Steel - Material Thickness |
24 ga to 3/8 in |
| Output Range |
20 to 210A, 30 to 200A, 30 to 230A |
| Features |
Easy to Setup and Use, Portable, Versatile |
| Welding Processes |
AC TIG, DC Stick, DC TIG, Flux Core, MIG, Pulsed TIG |
| Hz |
50/60 |
| OCV |
45, 46 |
| Aluminum - Material Thickness |
24 ga to 3/8 in |
| Duty Cycle |
15% Stick, 20% TIG, 240 V - 40% MIG |
| Standards |
CSA |
| Stainless Steel - Material Thickness |
24 ga to 3/8 in |
| Application |
Auto Body/Farm/Home Maintenance and Repair, Light Fabrication |
| Amps AC |
20-210 |
| Input (Amps) |
21.5/22.4/31.3 |

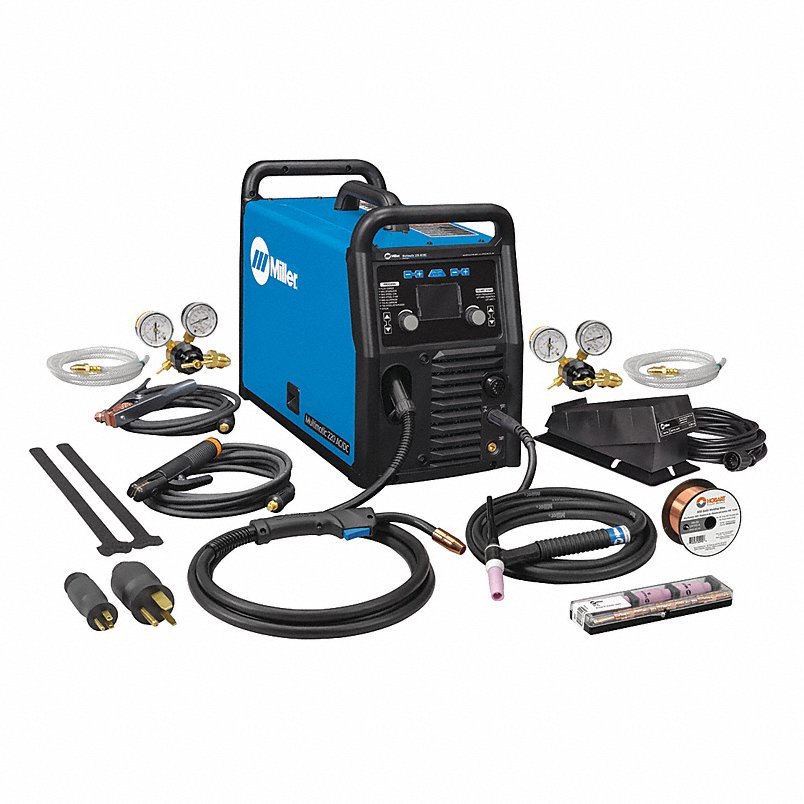

| Includes |
(2) Contact Tips, (2) Mix/Flow Gauge with Hoses, 0.5 ft Power Cord and Adapter Plugs, 10 ft MIG Gun and Cable Assembly, 10 ft Work Cable with Clamp and Dinse Style Connector, 13 ft Cable with Electrode Holder with Dinse Style Connector, Drive Roll, Flux Cored Wire, Foot Control with 20 ft Cord, Hook-and-Loop Cord Wraps, Material Thickness Gauge, Spool of Hobart(R) 0.030 in Solid Wire, TIG Torch Accessory Kit, TIG Torch with Dinse Style Connector |
| MIG Welding Maximum Output Current |
230 A |
| Input Voltage (Nominal) |
120V, 240V |
| Welder Kit Type |
MIG/Stick/TIG Package |
| Max. Amperage Range (MIG) |
150 A - 300 A |
| MIG Welding Minimum Output Current |
30 A |
| Remote Connection Type |
14-Pin (Miller) |
| Stick Welding Maximum Output Current |
200 A |
| Polarity |
AC/DC |
| Input Frequency |
50/60 Hz |
| Max. Amperage Range (TIG) |
150 A - 300 A |
| Welding Mode |
CC/CV |
| Enhanced Process |
Pulsed TIG (GTAW-P) |
| TIG Arc Control Feature |
Adjustable AC Balance, Adjustable AC Frequency |
| TIG Welding Maximum Output Current |
210 A |
| For Material Type |
Aluminum, Stainless Steel, Steel |
| For Minimum Material Thickness |
24 ga (Steel) |
| Minimum Wire Feed Speed |
60 in/min |
| TIG Welding Output @ Duty Cycle |
130 A @ 15.2 V, 40%, 210 A @ 18.4 V, 20% |
| Stick Welding Output @ Duty Cycle |
200 A @ 28.4 V, 15%, 90 A @ 23.6 V, 40% |
| MIG Welding Output @ Duty Cycle |
105 A @ 19.2 V, 60%, 170 A @ 21.5 V, 40%, 200 A @ 24 V, 20% |
| For Wire Type |
Flux-Cored, Solid |
| Max. Input Current |
31.3 A @ 240V AC (Single-Phase) |
| Plug Type |
5-15P, 6-50P |
| TIG Welding Minimum Output Current |
20 A |
| Maximum Wire Feed Speed |
600 in/min |
| Kit Includes |
Contact Tips, Drive Rolls, Flow Gauge/Regulator & Gas Hose, Foot Control, MIG Gun, Solid Wire, Stick Electrode Holder with Cable, TIG Torch, Work Cable with Clamp |
| Pulse Frequency |
0 to 150 pulses/second |
| Open Circuit Voltage |
46 V DC |
| Stick Welding Minimum Output Current |
30 A |
| For Maximum Material Thickness |
3/8 in (Steel) |
| Weight |
56 lb |
| Rated Output at Duty Cycle (Stick) |
200 A @ 15%, 90 A @ 40% |
| Color |
Blue |
| Power Cord Included |
Yes |
| TIG Arc Start Feature |
High Frequency Start, Lift Arc Start |
| Max. Amperage Range (Stick) |
150 A - 300 A |
| Model |
907757 |
| Process |
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW) |
| brand-mfr model |
MILLER ELECTRIC - 907757 |
| Process (Merch) |
SMAW, GTAW, GTAW-P, GMAW, FCAW |
| Package Quantity |
1 |
