| Welding Processes |
Stick Welding (SMAW), TIG Welding (GTAW) |
| Mild Steel - Material Thickness |
0.020 in to 3/16 in |
| Aluminum - Material Thickness |
Thin Gauge to 3/16 in |
| Input Voltage |
110/115/120V AC, 220/230/240V AC |
| Rated Output |
130A @ 15.2V |
| Welder Max. Output Amps |
160 |
| Welder Min. Output Amps |
5 |
| Welder Duty Cycle |
60 % |
| Series |
Maxstar 161 STH |
| Application |
Automotive/Motorsports, General Fabrication, Home/Shop, Vocational Schools |
| Welded Material |
Mild Steel, Stainless Steel |
| Welder Input Hz |
50/60 |

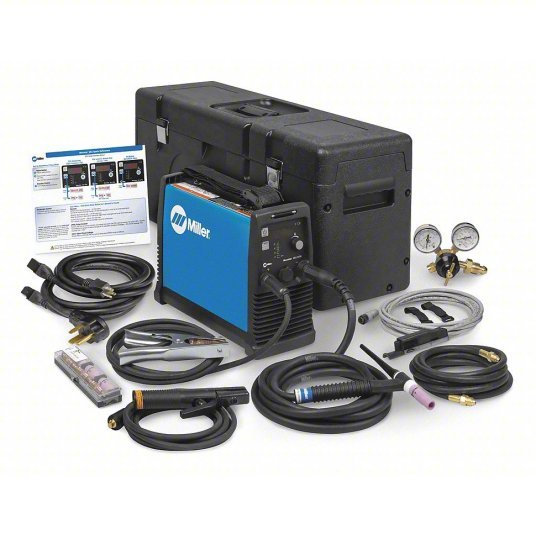

| Includes |
10 ft (3 m) work clamp with 25 mm Dinse-style connector, 12.5 ft (3.8 m) Weldcraft A-150 TIG torch with 25 mm. Dinse-style connector, 13 ft (4 m) stick electrode holder with 25 mm Dinse-style connector, AK2C accessory kit, Protective Miller(R) X-Case (301429), RCCS-6M remote fingertip control (195184), Regulator/flow gauge and gas hose |
| Welder Input Phase |
1 |
| Polarity |
DC |
| Input (Amps) |
15 |
| Features |
Auto Line Power Management Technology, Fan-On-Demand(TM), Hot Start(TM), Single Amperage Range, Thermal Overload Protection |
| Power Source Weight |
13 lb |
| Phase |
Single-Phase |
| Standards |
CSA, ISO |
| TIG Welding Minimum Output Current |
5 A |
| For Material Type |
Stainless Steel, Steel |
| Pulse Frequency |
0 to 150 pulses/second |
| For Minimum Material Thickness |
0.020 in (Steel) |
| TIG Welding Maximum Output Current |
160 A |
| TIG Arc Start Feature |
High Frequency Start, Lift Arc Start |
| For Maximum Material Thickness |
3/16 in (Steel) |
| Stick Welding Output @ Duty Cycle |
110 A @ 24.4 VDC, 100%, 160 A @ 26.4 VDC, 20%, 60 A @ 22.4 VDC, 100%, 90 A @ 23.6 VDC, 30% |
| Input Frequency |
50/60 Hz |
| Amperage Range |
5 to 160 A |
| Max. Input Current |
23.16 A @ 120V (Single-Phase) |
| Weight |
13 lb |
| Remote Connection Type |
6-Pin (Miller) |
| Color |
Blue |
| Open Circuit Voltage |
48V DC |
| Plug Type |
5-15P |
| Stick Welding Maximum Output Current |
160 A |
| Welding Mode |
CC |
| Power Cord Included |
Yes |
| TIG Welding Output @ Duty Cycle |
110 A @ 14.4 VDC, 100%, 130 A @ 15.2 VDC, 30%, 160 A @ 16.4 VDC, 20%, 90 A @ 13.6 VDC, 100% |
| Remote Control |
Fingertip Control Included |
| Stick Welding Minimum Output Current |
20 A |
| Model |
907711001 |
| Max. Amperage (TIG) |
160 A |
