| Series |

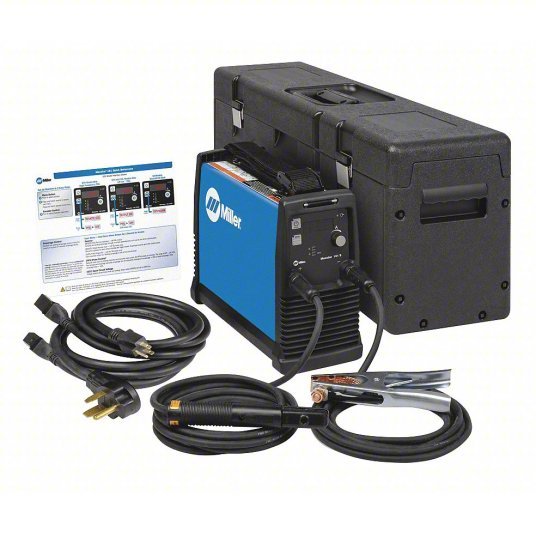

Maxstar 161 S |
| Standards |
CSA |
| Includes |
10 ft. Work Cable with Clamp and 25 mm Dinse-Style Connector, 13 ft. Electrode Cable with Holder and 25 mm Dinse-style Connector, Protective X-CASE(TM) |
| Input Voltage |
110/115/120V AC, 220/230/240V AC |
| Features |
Auto-Line Power Management Technology, Fan-On-Demand, Hot Start, Single Amperage Range, Thermal Overload Protection |
| Phase |
Single-Phase |
| Welding Processes |
Stick Welding (SMAW) |
| Duty Cycle |
100%, 160A @ 26.4V, 20% / 110A @ 24.4V |
| Welding Range (Amps DC) |
20-160 |
| Amps DC |
160 |
| Rated Output |
DC: 110A/24.4V/30% |
| Welding Amp Range Low |
20 to 90 |
| Output Range (Amps) |
20 to 160 |
| Welding Amp Range High |
20 to 160 |
| Hz |
50/60 |
| OCV |
400 VDC |
| Output Amps @100% Duty Cycle |
110 A |
| Application |
Build Up Welding, Farm, For Home, Light Fabrication, Repair and Maintenance, Shop |
| Output Amps @20% Duty Cycle |
160A |
| Polarity |
DC |
| Input (Amps) |
20 |
| Plug Type |
5-15P |
| Stick Welding Minimum Output Current |
20 A |
| Open Circuit Voltage |
48 V DC |
| Stick Welding Output @ Duty Cycle |
110 A @ 24.4 V @ 100% (240 V), 160 A @ 26.4 V, 60% (240 V), 60 A @ 22.4 V, 100% (120 V), 90 A @ 23.6 V, 30 % (120 V) |
| Remote Connection Type |
6-Pin (Miller) |
| Input Frequency |
50/60 Hz |
| Stick Welding Maximum Output Current |
160 A |
| For Material Type |
Stainless Steel, Steel |
| Welding Mode |
CC |
| Weight |
13 lb |
| Cable Connection Type |
Dinse-Style |
| Effective Input Current |
14.31 A @ 240V AC (Single-Phase), 14.68 A @ 120V AC (Single-Phase), 22.55 A @ 240V AC (Single-Phase), 23.16 A @ 120V AC (Single-Phase) |
| Color |
Blue |
