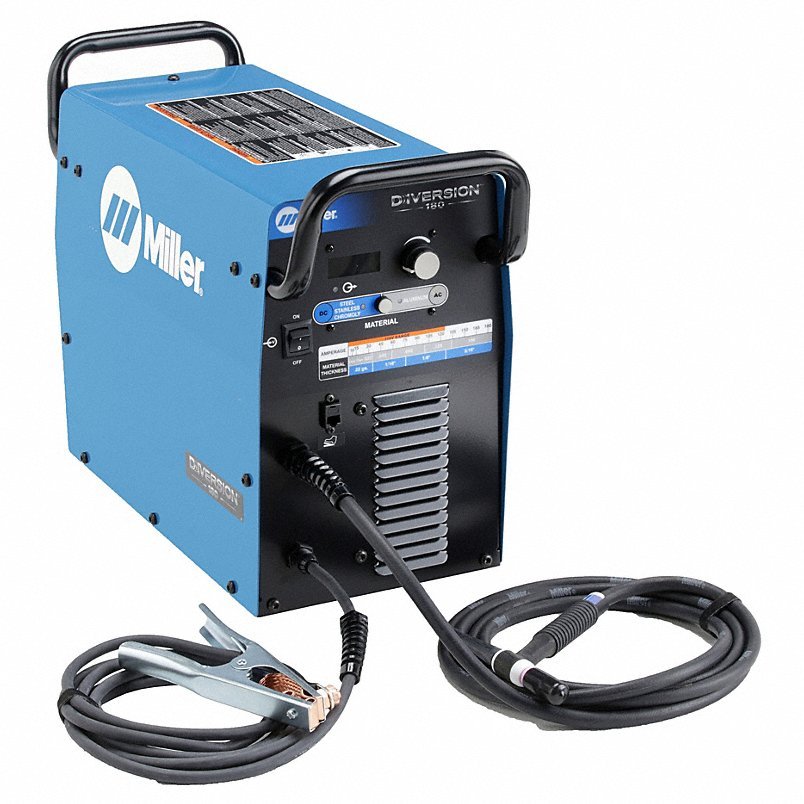

Miller 907627 Tig Welder, Diversion 180 Series, 120/240V AC, 180 Max. Output Amps
UPC: 715959600972 | Harmonization (Schedule B): 8515.39
SKU KV6DLX2
Original price
$4,158.49
-
Original price
$4,158.49
Original price
$4,158.49
$4,158.49
-
$4,158.49
Current price
$4,158.49
TIG Welder, For Material Type Aluminum, Stainless Steel, Steel, For Maximum Material Thickness 3/16 in (Aluminum), 3/16 in (Steel), For Minimum Material Thickness 0.025 in (Steel), 0.030 in (Aluminum), Input Frequency 50/60 Hz, Max. Input Current 20.5 A @ 230V, 26.5 A @ 115V, Phase Single-Phase, Polarity AC/DC, Series Diversion 180, Stick Welding Maximum Output Current 180 A, Stick Welding Minimum Output Current 10 A, Stick Welding Output @ Duty Cycle 0 A @ 12.4 V/150 A @ 16 V, 35 Percent
| UPC | 715959600972 |
| Item | TIG Welder |
| Welder Industrial Class | Light |
| Welding Processes | TIG |
| Mild Steel - Material Thickness | 0.030 in to 3/16 in |
| Aluminum - Material Thickness | 0.025 in to 3/16 in |
| Input Voltage | 120/240V AC |
| Rated Output | 60A @ 12.4V/150A @ 16V |
| Welder Max. Output Amps | 180 |
| Welder Min. Output Amps | 10 |
| Welder Duty Cycle | 35 % |
| Series | Diversion 180 |
| Welded Material | Aluminum, Steel |
| Includes | 12 ft (3.7 m) work cable with clamp, 12.5 ft (3.8 m) Weldcraft(TM) A-150 TIG torch, 8 ft (2.4 m) primary cord with MVP(TM) plugs for 120 V (219261) and 240 V (219258), Diversion(TM) 180, Regulator/flow gauge and gas hose, RFCS-RJ45 remote foot control (300432) |
| Welder Input Phase | 1 |
| Input (Amps) | 11.3/16 |
| Welder Input Hz | 50/60 |
| Application | Aerospace, Boat / Yacht, Construction, Heavy Equipment Manufacturing, High Purity Processing, Infrastructure, Manufacturing, Railcar, Shipbuilding |
| Polarity | AC/DC |
| Power Source Weight | 50 lb |
| Features | AC/DC Power Source, Digital Display, Fan-On-Demand, Inverter-Based, Portable Uses Miller's MVP(TM) Plug for Multi-Voltage Usage, Remote Amperage Foot Control Included |
| Input Frequency | 50/60 Hz |
| Amperage Range | 10 to 180 A |
| For Minimum Material Thickness | 0.025 in (Steel), 0.030 in (Aluminum) |
| Input Voltage (Nominal) | 120V, 208V, 240V |
| TIG Welding Minimum Output Current | 10 A |
| Welder Kit Type | TIG Package w/Foot Control |
| TIG Welding Output @ Duty Cycle | 125 A @ 15 V, 35% (115 V), 150 A @ 16 V, 20% (230 V), 180 A @ 17.2 V, 10% (230 V) |
| TIG Welding Maximum Output Current | 180 A |
| Stick Welding Output @ Duty Cycle | 0 A @ 12.4 V/150 A @ 16 V, 35 % |
| Stick Welding Maximum Output Current | 180 A |
| Stick Welding Minimum Output Current | 10 A |
| Color | Blue |
| Kit Includes | Flow Gauge/Regulator & Gas Hose, Foot Control, TIG Torch, Work Cable with Clamp |
| Weight | 50 lb |
| For Maximum Material Thickness | 3/16 in (Aluminum), 3/16 in (Steel) |
| Remote Control | Foot Control Included |
| Open Circuit Voltage | 80V DC |
| Rated Output at Duty Cycle (TIG) | 125 A @ 35%, 150 A @ 20%, 180 A @ 10% |
| For Material Type | Aluminum, Stainless Steel, Steel |
| Welding Mode | CC |
| Max. Amperage Range (TIG) | 150 A - 300 A |
| Max. Input Current | 20.5 A @ 230V, 26.5 A @ 115V |
| Remote Connection Type | RJ45 |
| Plug Type | 5-15P, 6-50P |
| Power Cord Included | Yes |
| Model | 907627 |
| Process | TIG Welding (GTAW) |
| Process (Merch) | GTAW |
| brand-mfr model | MILLER ELECTRIC - 907627 |
| Welder Type (Merch) | TIG Package w/Foot Control |
| Package Quantity | 1 |
