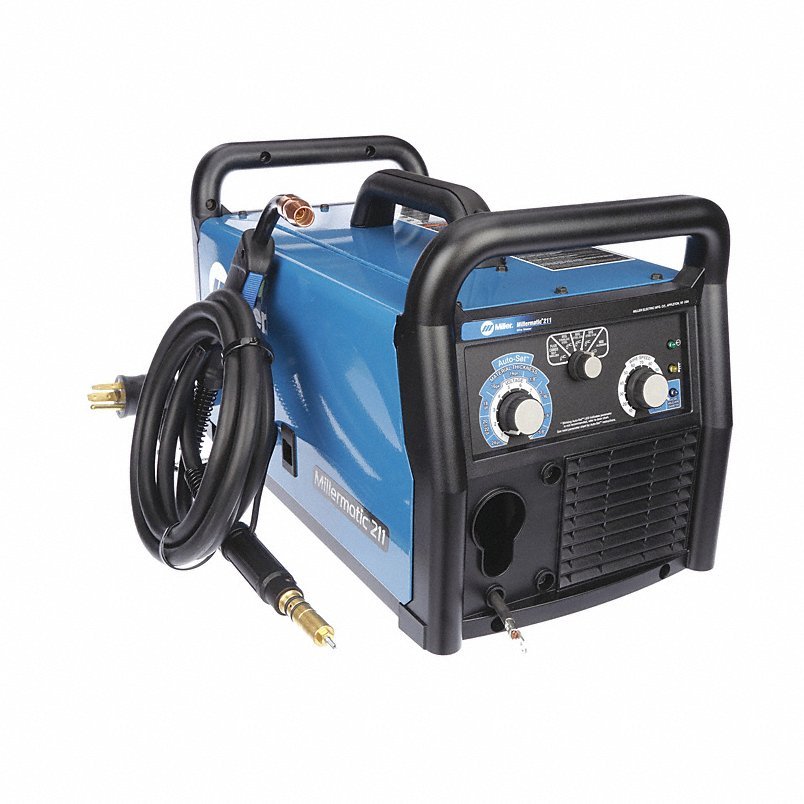

Miller 907614 MIG Welder, Millermatic 211, 1, 120/240V AC, 30 to 230A DC


MIG Welder, Series Millermatic 211, Input Voltage 110/115/120V AC, 220/230/240V AC, Phase Single-Phase, Welding Mode CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), For Wire Type Flux-Cored, Solid, Maximum Wire Diameter 0.035 in (Solid), 0.045 in (Flux-Cored), Maximum Wire Feed Speed 600 in/min, Model 907614, MIG Welding Output @ Duty Cycle 115 A @ 19.8 V, 20 Percent, 150 A @ 21.5 V, 40 Percent

Item MIG Welder
Series Millermatic 211
Input Voltage 120/240V AC
Welded Material Aluminum, Steel
Mild Steel - Material Thickness 24 ga to 3/8 in
Phase 1
Welding Processes Flux Core, MIG
Hz 60
Portability Handheld Portable
Features Advanced Auto-SetTM, Auto Spoolgun Detect, Smooth-StartTM, Angled Cast-Aluminum Drive System, Quick SelectTM Drive Roll, Thermal Overload Protection, Fan-on-Demand
Application Maintenance, Repair, Auto/Cycle Shops, Farm and Ranch Jobs, Hobby Welding
Duty Cycle 40 %
Input Amps 17
Output Range 30 to 230A DC
Stainless Steel - Material Thickness 20 ga to 1/4 in
Rated Output 150A @ 21V DC
Aluminum - Material Thickness 18 ga to 3/8 in
Includes Millermatic 211, 6.5 ft (2 m) power cord and MVP(TM) adapter plugs for 120V and 240V, 10 ft (3 m) M-100 MIG gun and cable assembly, 10 ft (3 m) work cable and clamp, Argon and AR/CO2 mix regulator/flow gauge with hose, Spool of Hobart(R) .030 in (0.8 mm) solid wire, Two contact tips for .030 in (0.8 mm) wire, Quick Select(TM) drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire, Material thickness gauge #229895, Hook-and-loop cord wraps
Standards CSA certified
Kit Includes Contact Tips, Drive Rolls, Flow Gauge Regulator & Gas Hose, MIG Gun, Solid Wire, Work Cable with Clamp
For Minimum Material Thickness 24 ga (Mild Steel)
Plug Type 5-15P, 6-50P
Max. Amperage Range (MIG) 150 A - 300 A
Minimum Wire Feed Speed 60 in/min
For Material Type Mild Steel, Stainless Steel
MIG Welding Minimum Output Current 30 A
MIG Welding Output @ Duty Cycle 115 A @ 19.8 V, 20%, 150 A @ 21.5 V, 40%
Polarity DC
Power Cord Included Yes
MIG Welding Maximum Output Current 230 A
Maximum Wire Feed Speed 600 in/min
For Maximum Material Thickness 3/8 in (Mild Steel)
Welding Mode CV
Input Voltage (Nominal) 120V, 240V
Input Frequency 50/60 Hz
Amperage Range 30 to 230 A
Welder Kit Type MIG Package
Rated Output at Duty Cycle (MIG) 115 A @ 20%, 150 A @ 40%
Weight 38 lb
For Wire Type Flux-Cored, Solid
Model 907614
Maximum Amperage Range (MIG) 150 A - 300 A
Process Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Process (Merch) GMAW, FCAW
brand-mfr model MILLER ELECTRIC - 907614
Package Quantity 1
