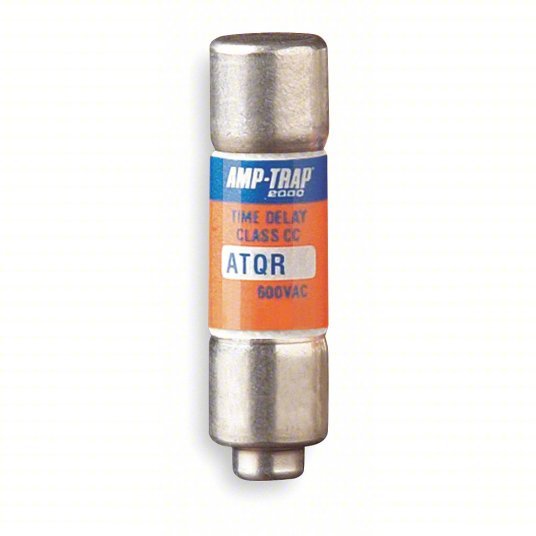

Mersen ATQR15 UL Class CC Fuse Time Delay, 15 A, ATQR, Cylindrical Body, Nonindicating, 300V DC

UL Class CC Fuse, 15 A, 600V AC, 300V DC, Class CC, ATQR Series, Nonindicating, Time Delay, Body Style Cylindrical, Rejection, Interrupt Rating 100kA at 300V DC, 200kA at 600V AC, Fuse Size 1-1/2 in L x 13/32 in dia, Length 1 1/2 in, Diameter 13/32 in, Equivalent Brand and Series Bussmann FNQ-R, Littelfuse KLDR, Mersen ATQR, Equivalent Series ATQR, FNQ-R, KLDR, Compatible Fuse Block Series USCC, USFMCC, Body Material Melamine, Dual Element, Standards UL/CSA

Class	CC
Series	ATQR
Speed	Time-Delay
Amps	15A
AC Voltage Rating	600V AC
DC Voltage Rating	300V DC
Visual Indication	Non-Indicating
Interrupt Rating	100kA at 300V DC, 200kA at 600V AC
Body Style	Cylindrical
Body Material	Melamine
Equivalent Brand and Series	Bussmann FNQ-R, Littelfuse KLDR, Mersen ATQR
Equivalent Series	ATQR, FNQ-R, KLDR
Fits Fuse Block Style	Rejection
Compatible Fuse Block Series	USCC, USFMCC
Item	UL Class Fuse
Rejection / Nonrejection	Rejection
Element	Dual
Standards	UL/CSA
Mounting	Clip
Weight	0.02 lb
AC Max I.R./Breaking Capacity: I1	200 kA
In Line Fuseholder	D/W
APPROVALS & STANDARDS	UL listed to standard 248-4 File E2137; DC listed to UL standard 248; CSA certified to standard C22.2 No. 248.4
Green Environmental Attribute	RoHS 2011/65/EU Compliant
Frequency	50/60 Hz
Connection/Terminal Material	Tin-Plated Copper
Connection Type	Ferrule
Fuse Holder Code	D/W
Fuse Speed	Time Delay
Short Description	Fuse Amp-Trap 2000® 600V 15A Time-Delay Class CC ATQR Series
