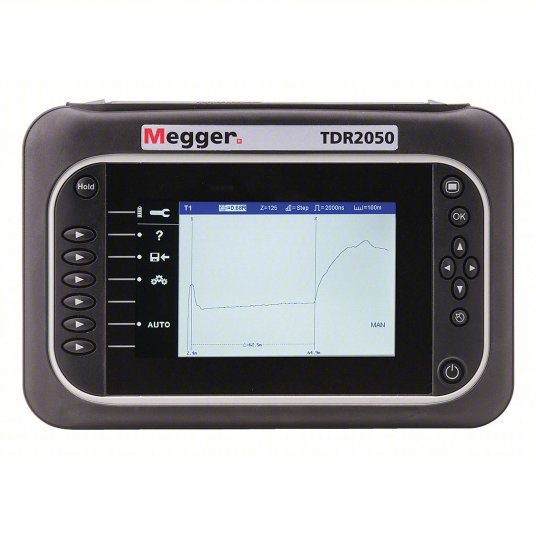

Megger TDR2050 Time Domain Reflectometer Dual Channel Time Domain Reflectometers, CAT IV 600V

Time Domain Reflectometer, CAT Safety Rating CAT IV 600V, Testing Functions Cable Speed Qualification, Distance to Fault, Impedance Detection, Adapters Included Not Applicable, Connector Type Alligator Clips, F-Type, Data Safe Monitor No, Display Screen Type LCD, Includes Carrying Case, Leads, Maximum Cable Length 65,000 ft, Fault Location Pulse Duration 2 nsec, Wire Mapping Detections Not Applicable, Alert Type Digital Display, Port Number Display Yes, Number of Results Stored 100

Measurement Range	20,000
Display	LCD
Accuracy (%)	+/-1
Impedance	25, 50, 75, 100, 125 and 140 ohm
Includes	Carrying Case, Leads
Connector Type	Alligator Clips, F-Type
Special Features	Accents Color Schemes Outdoor, Cable Impedance, Custom Step TDR, DDG, Trace Tagging with (32) Upper Case Letters Characters Chosen, TX Null Automatic
Calibration Certificate	Not Included
Pulse Duration	2 nS
Output Amplitude	20 V
Auto Shutoff	Yes
Resolution	1% of Range
Measurement Range (M)	20,000 m
Powered By	Lithium-ion Battery
Enclosure Rating	IP54
Velocity Factor	0.2 to 0.99
Data Safe Monitor	No
Waterproof	No
Product Type	Time Domain Reflectometer
Alert Type	Digital Display
Includes Batteries	Yes
Testing Functions	Cable Speed Qualification, Distance to Fault, Impedance Detection
CAT Safety Rating	CAT IV 600V
Data Logger	Yes
Minimum Operating Temperature	5 Degrees F
Battery Chemistry	Lithium Ion
Port Number Display	Yes
Auto Power Off	Yes
Number of Results Stored	100
Fault Location Pulse Duration	2 nsec
Maximum Operating Temperature	122 Degrees F
IP Rating	IP54
Maximum Impedance Measured	140 ohm
Compatible Cable Type	Twisted Pair
Display Screen Type	LCD
Operating Voltage	600 V
