| Output Test Voltage |
2500V DC |
| Insulation Resistance Range |
0.1 megaohm to 1 gigohm |
| Resistance Range |
0.1 to 200 gig ohms |
| Capacitance Range |
0.1 nF to 10 uF |
| Display |
Digital/Analog LCD |
| Features |
Guard Terminal for High Resistance Accuracy, Polarization Index (PI) and Dielectric Absorption Ratio (DAR), Rechargeable Options for Mains and Car Charging, Stabilized Insulation Test Voltage |
| Power Source |
Battery |
| Diode Test |
No |
| Interface |
Bluetooth |
| Data Logging |
Yes |
| Safety Rating |
EN61557, IEC61010 |
| Auto Ranging |
Yes |

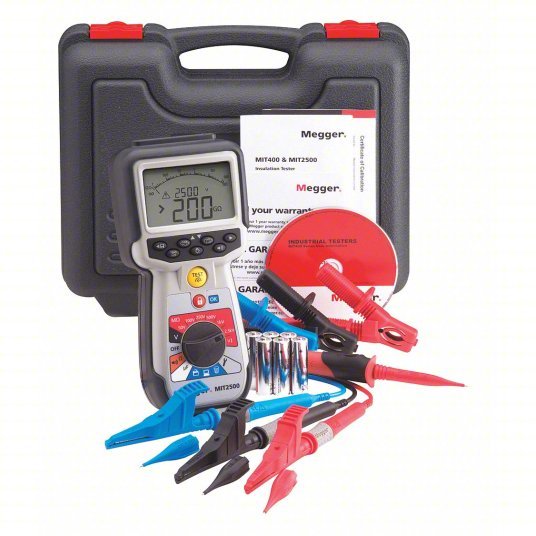

| Includes |
2.5 Kv Red/Black/Blue Silicone Test Leads with Clips, Carrying Case, Red/Black/Blue Silicone Test Leads with Prods and Clips |
| Auto Power Off |
Yes |
| Calibration Certificate |
Available Separately |
| Green Environmental Attribute |
Product is Rechargeable |
| Parameters Measured |
Continuity, Insulation Resistance |
| CAT Safety Rating |
CAT IV 600V |
| Display Type |
Digital |
| Communication Protocol |
Bluetooth |
| Test Voltage |
1,000V DC, 100V DC, 2,500V DC, 250V DC, 500V DC, 50V DC |
| Battery Chemistry |
Alkaline, Nickel Metal Hydride |
| Operating Voltage |
2,500V |
| PI/DAR Testing |
Yes |
| Includes Batteries |
Yes |
| Standards |
EN 61557, IEC 61010 |
| USB Data Download Included |
No |
| Input Impedance |
250 kiloohm |
| Includes Software |
Yes |
| Timed Ramp Voltage Test |
No |
| Number of Digits |
2 |
| Live Circuit Voltage |
Upto 600V AC/DC |
| Pass/Fail Selection Limits |
Yes |
| Maximum Operating Temperature |
131 Degrees F |
| Minimum Capacitance Measured |
0.1 nF |
| Display Screen Type |
LCD |
| Minimum AC Voltage Measured |
50 V |
| IP Rating |
IP54 |
| Testing Functions |
Continuity, Insulation |
| Insulation Resistance Resolution |
0.01 ohm to 1 megaohm |
| Remote Test Probe Included |
Yes |
| Backlit Digital Display |
Yes |
| Maximum AC Voltage Measured |
2,500 V |
| Resistance Accuracy |
+/-0.50% |
| Maximum Capacitance Measured |
10 uF |
| Test Current |
1 mA |
| Dustproof |
Yes |
| Greater Than 30V Warning |
No |
| Bluetooth Compatible |
Yes |
| Maximum Insulation Resistance |
200 gigohm |
| Capacitance Auto Discharge |
Yes |
| Insulation Limit Alarm |
Yes |
| Waterproof |
No |
| Number of Batteries Required |
6 |
| Data Logger |
Yes |
| Minimum Operating Temperature |
14 Degrees F |
| Minimum Insulation Resistance |
10 gigohm |
