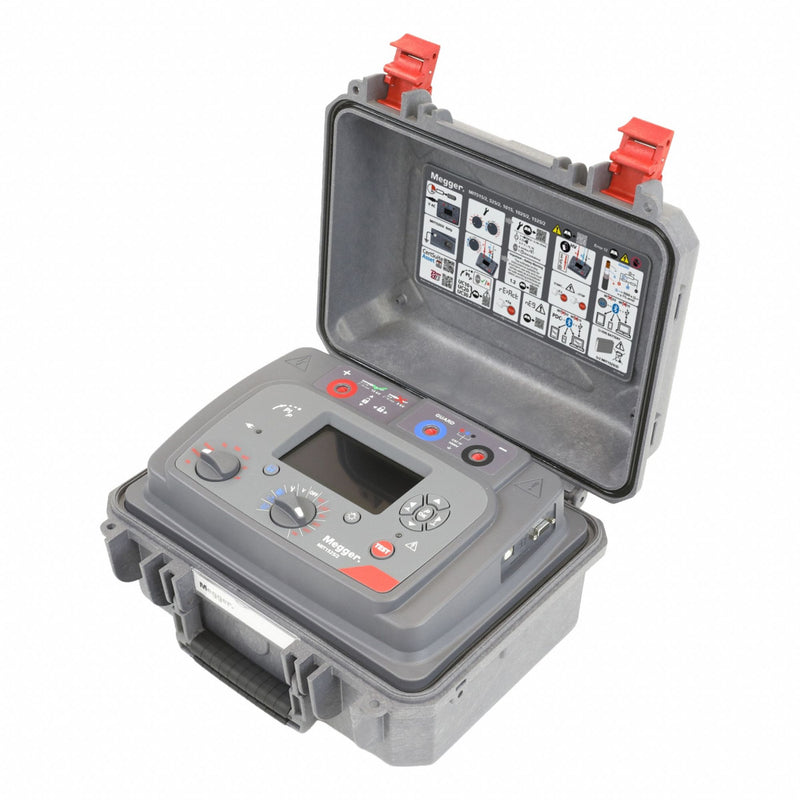

Megger MIT1025/2 insulation resistance tester

Megger MIT1025/2 Insulation Resistance Tester, 100 kilohm to 10 gigohm, CAT IV 1000V, Digital

UPC: | Harmonization / Schedule B : 9030.33.3400

Country of Origin: United Kingdom | Shipping Weight: 23 lbs

$9,714.84 - $9,714.84
$9,714.84
$9,714.84 - $9,714.84
$9,714.84

Insulation Resistance Tester, Backlit Digital Display Yes, Bluetooth Compatible Yes, CAT Safety Rating CAT IV 1000V, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof Yes, Greater Than 30V Warning Yes, Includes Leads with Insulated Clips, Power Lead, Remote, USB Cable, Insulation Limit Alarm Yes, Maximum Insulation Resistance 10 gigohm, Minimum Insulation Resistance 100 kiloohm, PI/DAR Testing Yes, Pass/Fail Selection Limits No, Power Source AC Adapter, Battery

Power Source AC Adapter, Battery
Includes Leads with Insulated Clips, Power Lead, Remote, USB Cable
USB Data Download Included Yes
Maximum Operating Temperature 122 Degrees F
Maximum AC Current Measured 6 mA
Greater Than 30V Warning Yes
Test Voltage 10,000V DC, 100V DC
Minimum DC Current Measured 0.01 nA
Data Output Type Bluetooth, USB
Insulation Resistance Resolution 10 kiloohm to 20 teraohm @ 10 kV, 10 kiloohm to 30 teraohm @ 15 kV, 11 kiloohm to 15 teraohm @ 5 kV
Test Current 0.01 nA to 6 mA
Resistance Accuracy +/-5%, see ds for ranges
Maximum Insulation Resistance 10 gigohm
Includes Software Yes
Standards IEC 62133:2006
Testing Functions AC Voltage, DC Voltage, Frequency, Insulation Resistance
Remote Test Probe Included No
Timed Ramp Voltage Test Yes
Live Circuit Voltage Measurement - Minimum 30 V AC/DC
Minimum Capacitance Measured 10 nF
Display Type Digital
CAT Safety Rating CAT IV 1000V
Display Screen Type LCD with Backlight
Capacitance Auto Discharge Yes
Insulation Limit Alarm Yes
Auto Ranging Yes
Operating Voltage 120V AC
IP Rating IP40, IP65
Minimum AC Current Measured 0.01 nA
Data Logger Yes
Minimum Operating Temperature -4 Degrees F
Alert Type Digital Display, Audible
Maximum DC Voltage Measured 660 V
Calibration Certificate Included Traceable without Data
Digital Memory Capacity 5.5 hr Logging @ 5 sec Intervals
Minimum AC Voltage Measured 30 V
Dustproof Yes
Instrument Style Briefcase
Features Lid Pouch, Noise Immunity, Remote Operation, Voltage Warnings
Installation Tester Socket Region EU, US
Backlit Digital Display Yes
Minimum Insulation Resistance 100 kiloohm
Live Circuit Voltage Measurement - Maximum 660 V AC/DC
Minimum DC Voltage Measured 30 V
Pass/Fail Selection Limits No
Leakage Current Range 0.01 nA to 6 mA
Auto Power Off Yes
Number of Batteries Required 2
Maximum AC Voltage Measured 660 V
Low Resistance Range 10 kiloohm to 15 teraohm @ 5 kV; 10 kiloohm to 20 teraohm @ 10 kV; 10 kiloohm to 30 teraohm @ 15 kV
Maximum Capacitance Measured 25 uF
Maximum DC Current Measured 6 mA
Waterproof Yes
PI/DAR Testing Yes
Country of Origin United Kingdom
