McMaster 9939K35 Copper Tubing with Coated Interior 5/8" OD, 0.035" Wall Thickness - KVM Tools Inc.KV9939K35

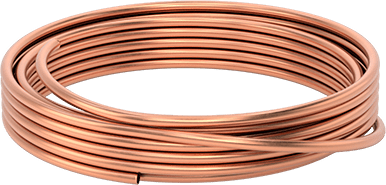

McMaster 9939K35 Copper Tubing with Coated Interior 5/8" OD, 0.035" Wall Thickness

UPC: | Harmonization / Schedule B : 7411.10.1000

Country of Origin: Thailand | Shipping Weight: 14.433 lbs

$1,062.80 - $1,062.80
$1,062.80
$1,062.80 - $1,062.80
$1,062.80

The inside of this tubing is lined with 99% pure tin for added corrosion resistance. It is seamless, so it has a smooth interior for unrestricted flow.

For Use With

Natural Gas
Material

Copper
Interior Finish

Tin Coated

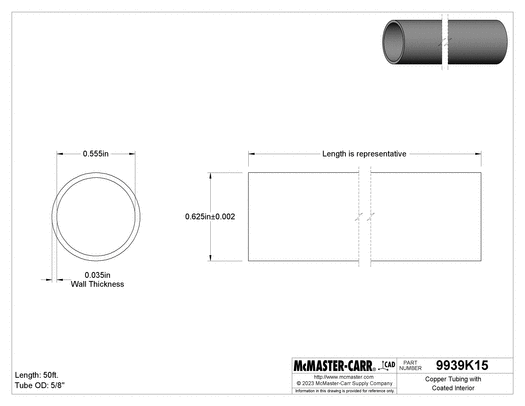

OD

5/8"
OD Tolerance

-0.002" to 0.002"
Wall Thickness

0.035"
ID

0.555"
Maximum Pressure

610 psi @ 72° F
Temperature Range

-100° to 400° F
Fabrication

Seamless
Flareable

Yes
Form

Coil
Bendable

Yes
Bending Method

By Hand
Temper Rating

Soft
Compatible Tube Fittings

Compression
Specifications Met

ASTM B75
Length

50 ft.
RoHS

RoHS 3 (2015/863/EU) Compliant
REACH

REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant
DFARS

Specialty Metals COTS-Exempt
Country of Origin

Thailand, United States, or Vietnam
USMCA Qualifying

No
Schedule B

741110.1000
ECCN

EAR99
