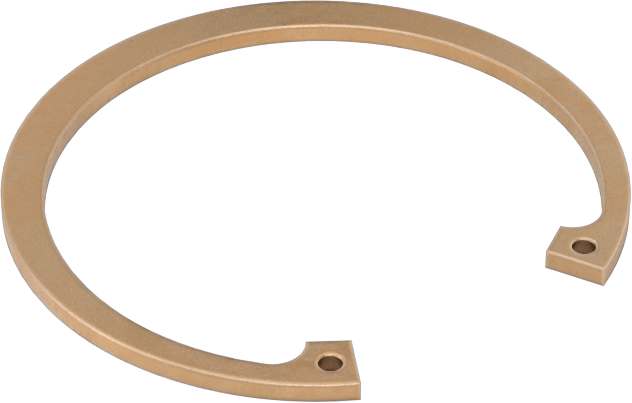

McMaster 98409A264 Internal Retaining Ring, for 2-5/8" ID, Zinc Yellow-Chromate-Plated Spring Steel, Pack of 5
McMaster 98409A264 Internal Retaining Ring, for 2-5/8" ID, Zinc Yellow-Chromate-Plated Spring Steel, Pack of 5
McMaster 98409A264 Internal Retaining Ring, for 2-5/8" ID, Zinc Yellow-Chromate-Plated Spring Steel, Pack of 5
McMaster 98409A264 Internal Retaining Ring, for 2-5/8" ID, Zinc Yellow-Chromate-Plated Spring Steel, Pack of 5
McMaster 98409A264 Internal Retaining Ring, for 2-5/8" ID, Zinc Yellow-Chromate-Plated Spring Steel, Pack of 5
McMaster 98409A264 Internal Retaining Ring, for 2-5/8" ID, Zinc Yellow-Chromate-Plated Spring Steel, Pack of 5
McMaster 98409A264 Internal Retaining Ring, for 2-5/8" ID, Zinc Yellow-Chromate-Plated Spring Steel, Pack of 5
McMaster 98409A264 Internal Retaining Ring, for 2-5/8" ID, Zinc Yellow-Chromate-Plated Spring Steel, Pack of 5

McMaster 98409A264 Internal Retaining Ring, for 2-5/8" ID, Zinc Yellow-Chromate-Plated Spring Steel, Pack of 5

UPC: | Harmonization / Schedule B : 7318.24.0000

Country of Origin: United States | Shipping Weight: 0.17 lbs

$60.62 - $60.62
$60.62
$60.62 - $60.62
$60.62

Secure components inside a housing or bore with our go-to internal retaining rings. Shaped in the most common style, these are tapered so the thickest section is opposite their opening for a secure 360-degree hold. Squeeze with retaining ring pliers and release into a groove.

Ring OD is measured with the ring uninstalled.

Zinc-Yellow-Chromate-Plated Carbon Steel—These rings are strong with good wear resistance. They provide some corrosion resistance, but not as much as stainless steel rings.

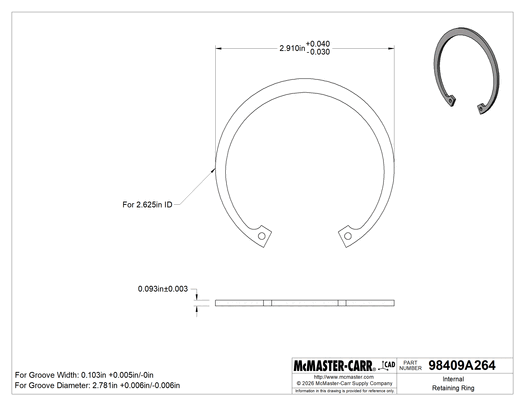

Retaining Ring Type Internal
Material Zinc-Yellow-Chromate-Plated Carbon Steel
For ID 2 5/8"
Diameter 2.781"
Diameter Tolerance -0.006" to 0.006"
Width 0.103"
Width Tolerance 0" to 0.005"
OD 2.91"
OD Tolerance -0.03" to 0.04"
Thk. 0.093"
Thk. Tolerance -0.003" to 0.003"
Thrust Load Capacity 35,000 lbf
Minimum Hardness Rockwell C40
Specifications Met ASME B18.27.1
Magnetic Properties Magnetic
Retaining Ring Style Tapered
System of Measurement Inch
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance Not Compliant
Schedule B Number 731824.0000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying Yes
Related Product Pliers
