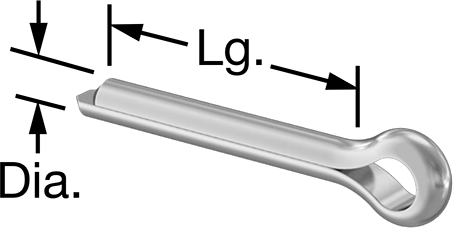

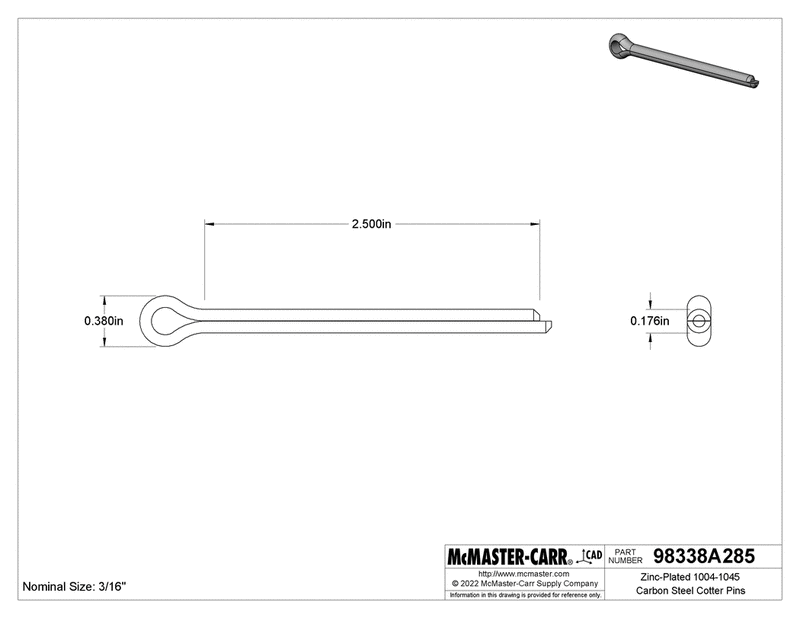

McMaster 98338A285 Zinc-Plated Carbon Steel Cotter Pins 3/16" Diameter, 2-1/2" Long PK50
UPC: | Harmonization / Schedule B : 7318.24.0000
Country of Origin: United States | Shipping Weight: 1 lbs
UPC: | Harmonization / Schedule B : 7318.24.0000
Country of Origin: United States | Shipping Weight: 1 lbs
Lock the ends of clevis pins and shafts to keep components in place. Slide these cotter pins into a hole and then bend the prongs outward with pliers to secure. Also known as split pins, one prong is slightly longer than the other for easy opening once inserted. Repeated bending will weaken the pin, so they should not be reused.
Zinc-Plated Carbon Steel—These pins withstand occasional exposure to moisture. However, since friction from moving parts can wear away the finish, they're not ideal for wet environments. While not nearly as corrosion resistant as stainless steel, they are stronger and won’t deform under stress.
Cotter Pin Type
|
Standard |
Material
|
Zinc-Plated Carbon Steel |
Diameter
|
3/16" |
Length
|
2 1/2" |
Specifications Met
|
ASME B18.8.1 |
Pin Type
|
Cotter |
System of Measurement
|
Inch |
Country of Origin
|
United States |
DFARS Compliance
|
Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN)
|
EAR99 |
REACH Compliance
|
REACH (EC 1907/2006) (01/23/2024, 240 SVHC) Compliant |
RoHS Compliance
|
RoHS 3 (2015/863/EU) Compliant |
Schedule B Number
|
731824.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying
|
No |
