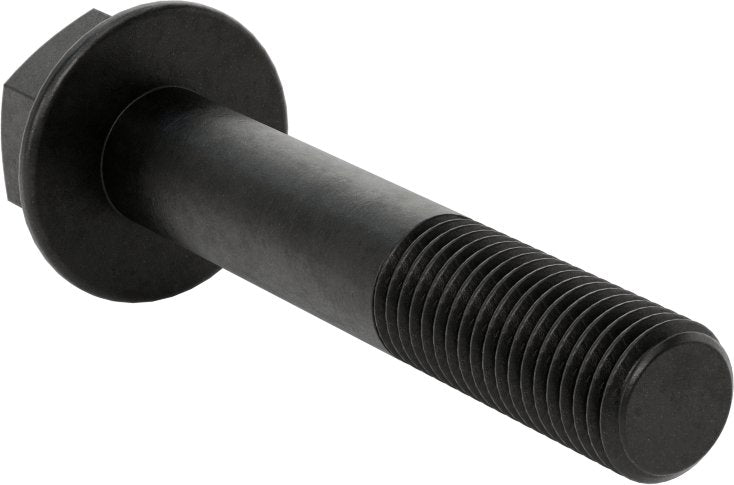

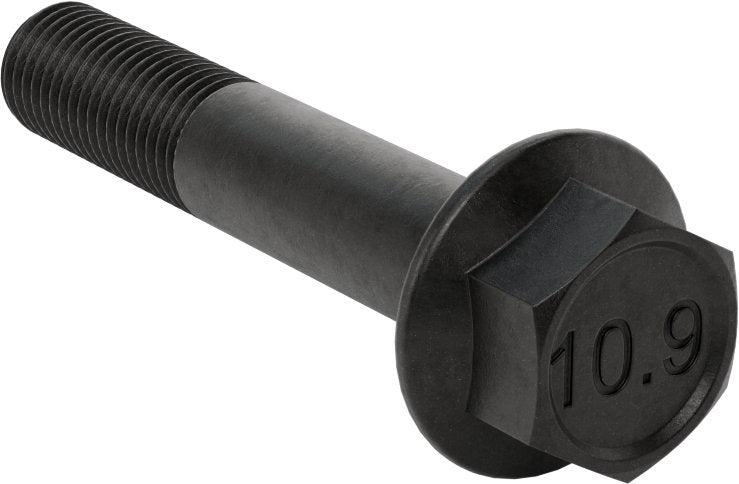

McMaster 98093A897 Black-Phosphate Class 10.9 Steel Screw Flanged Hex Head, M16 x 2.00mm, 90mm Long PK5

Name: McMaster 98093A897 Black-Phosphate Class 10.9 Steel Screw Flanged Hex Head, M16 x 2.00mm, 90mm Long PK5
Brand: McMaster-Carr
SKU: KV98093A897
Price: 43.15 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 7318.15.9000

Country of Origin: | Shipping Weight:

$43.15 - $43.15

$43.15

$43.15 - $43.15

$43.15

Quantity

Choose these Class 10.9 steel screws for high-stress applications, such as valves, pumps, motors, and automotive suspension systems. They are at least 25% stronger than medium-strength steel screws. The flange distributes pressure where the screw meets the surface, eliminating the need for a separate washer. Head height includes the flange. Length is measured from under the flange.

Black-phosphate steel screws are mildly corrosion resistant in dry environments.

Screws that meet ISO 898-1 or SAE J1199 comply with specifications and testing requirements for material quality.

Screws that meet ASME B18.2.3.9M or DIN 6921 comply with specifications for dimensional standards.

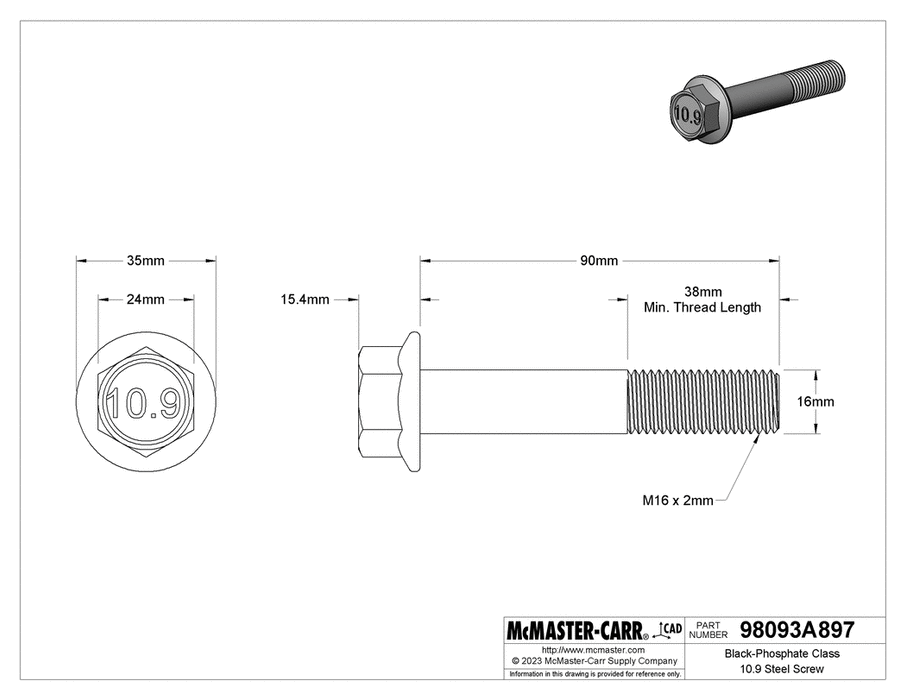

Head Type	Hex
Screw Features	Flanged
Drive Style	External Hex
System of Measurement	Metric
Thread Direction	Right Hand
Thread Size	M16
Thread Pitch	2 mm
Thread Type	Metric
Thread Fit	Class 6g
Length	90 mm
Threading	Partially Threaded
Min. Thread Length	38 mm
Thread Spacing	Coarse
Head, mm
Width	24
Height	15.4
Flange Diameter	35 mm
Fastener Strength Grade/Class	Class 10.9
Material	Black-Phosphate Steel
Tensile Strength	150,000 psi
Hardness	Rockwell C32
Specifications Met	ASME B18.2.3.9M, SAE J1199
RoHS	RoHS 3 (2015/863/EU) Compliant
REACH	REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant
DFARS	Specialty Metals Compliant (252.225-7009)
Country of Origin	Canada
USMCA Qualifying	No
Schedule B	731815.9000
ECCN	EAR99
