McMaster 97235K835 18-8 Stainless Steel Slotted Shim, 260-Piece Assortment, Trade Size B

UPC: | Harmonization / Schedule B : 7326.90.8695

Country of Origin: United States | Shipping Weight: 5 lbs

Original price $1,049.69 - Original price $1,049.69
Original price
$1,049.69
$1,049.69 - $1,049.69
Current price $1,049.69

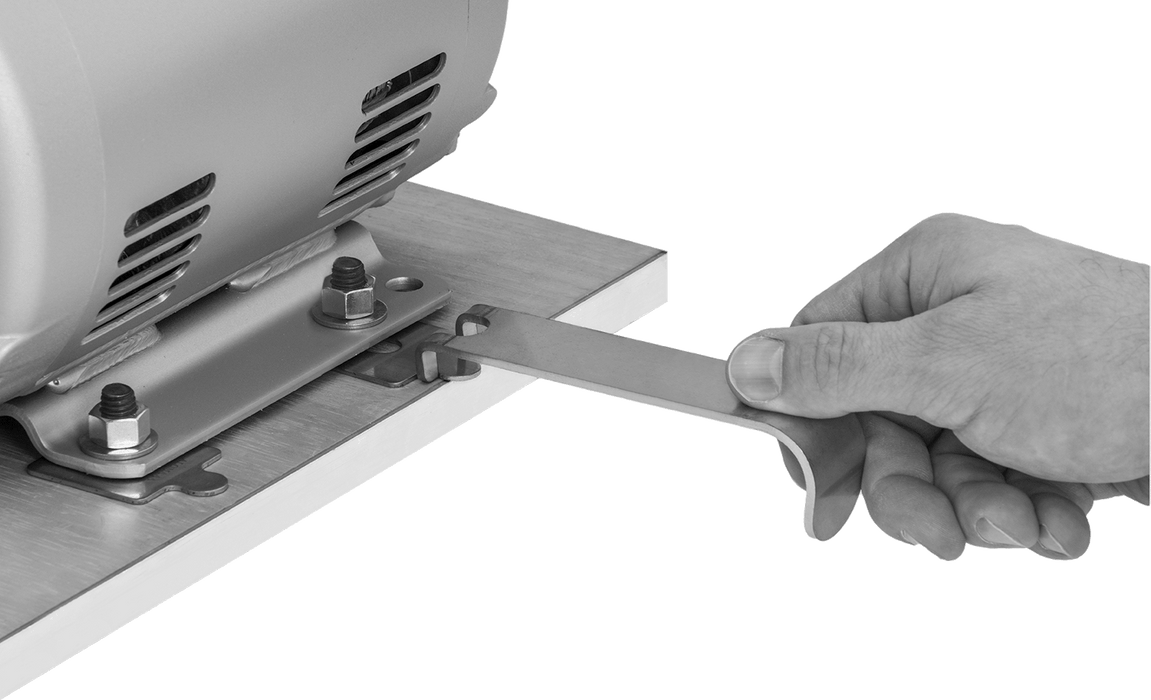

When you don’t know the exact shim thickness you’ll need, keep multiple slotted shim thicknesses on hand so you always have the right one. Slip these shims around existing mounting fasteners to precisely align and level components such as pumps, compressors, and gearboxes with motors, all without disassembling them. They’re also good for leveling machines on uneven surfaces. To reduce sizing errors, these shims are either labeled with their thickness so there's no need to measure or color coded by thickness to quickly spot the right size.

You can stack multiple shims to achieve your exact thickness, but stacking more than four may cause them to shift. Remember, fewer shims are better, so a couple of thicker shims are more stable than a bunch of thin shims.

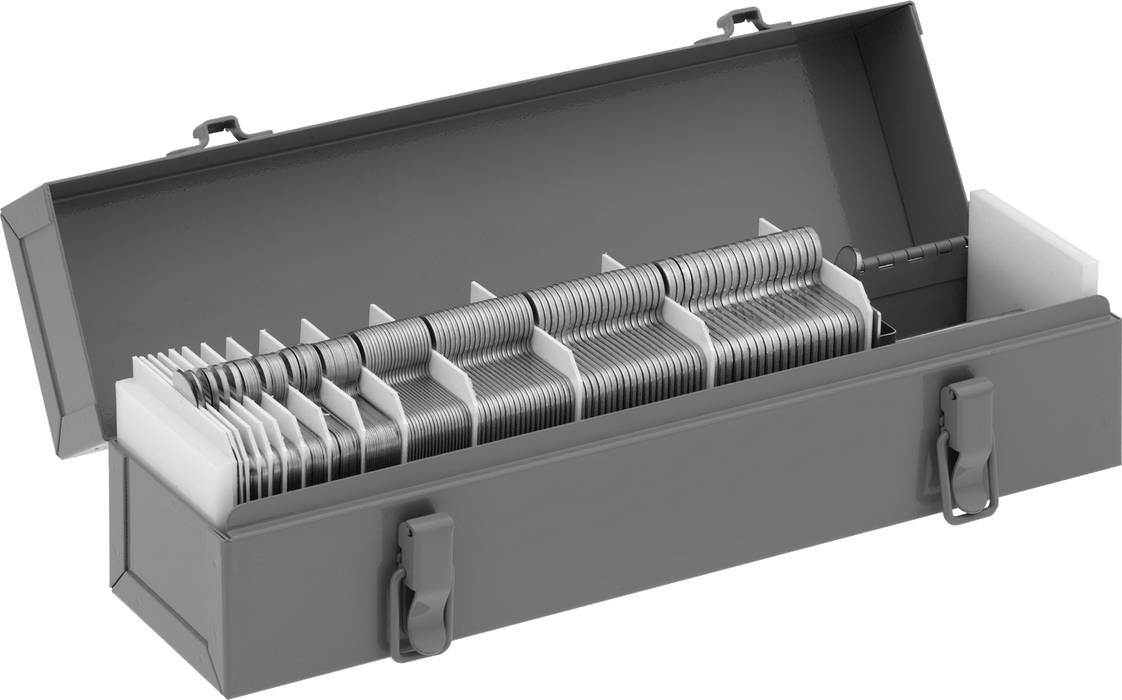

Shims with Metal Case — Protect the shims from damage with the rugged metal case. Dividers sort the shims by thickness, while sturdy handles make it easy to carry them around.

18-8 Stainless Steel — The choice for wet and outdoor environments, these shims resist rust. However, they’ll corrode or pit when exposed to salt water and chemicals.

Shape Slot
Container Type Metal Case
Length 3"
Width 3"
Shim Trade Size B
Number of Pieces 260
Includes 20 each of 0.001", 0.002", 0.003", 0.004", 0.005", 0.010", 0.015", 0.020", 0.025", 0.050", 0.075", 0.100", 0.125" thick shims
For Maximum Screw Size 3/4"
Slot Width 13/16"
Slot Depth 1 29/32"
Minimum Hardness Rockwell B70
Identification Type Labeled
End Shape Tab
Magnetic Properties May Be Mildly Magnetic
Material 18-8 Stainless Steel
Number of Slots 1
Performance Corrosion Resistant, Precision Adjust
System of Measurement Inch
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 732690.8695
U.S.–Mexico–Canada Agreement (USMCA) Qualifying Yes
