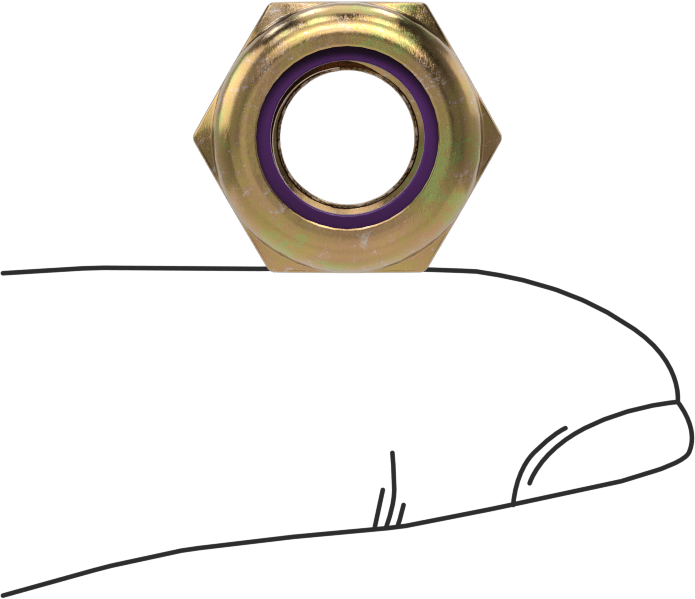

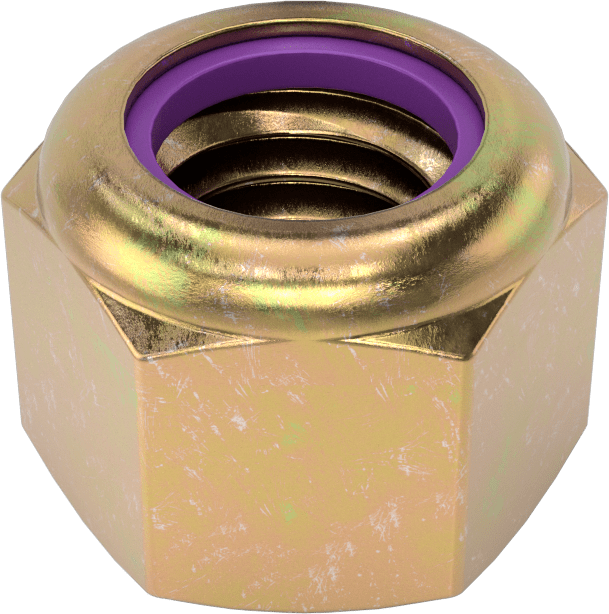

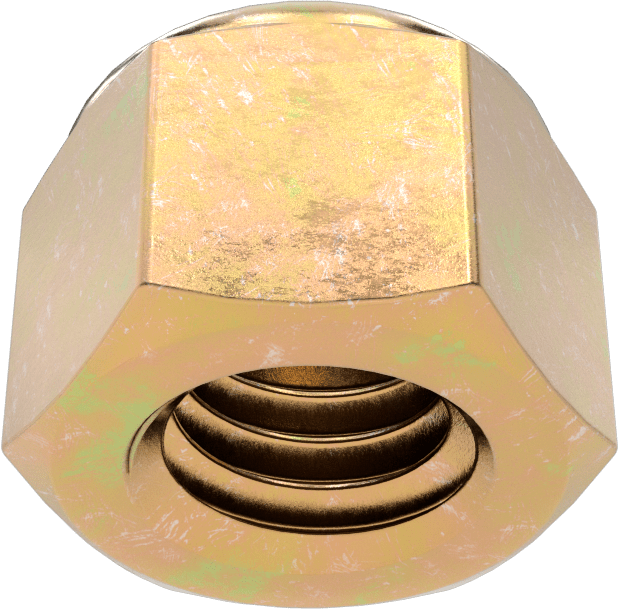

McMaster 97135A230 High-Strength Steel Nylon-Insert Locknut, Pack of 20, Grade 8, Zinc Yellow-Chromate Plated, 3/8"-16 Thread
UPC: | Harmonization / Schedule B : 7318.16.0000
Country of Origin: Taiwan | Shipping Weight: 1 lb
UPC: | Harmonization / Schedule B : 7318.16.0000
Country of Origin: Taiwan | Shipping Weight: 1 lb
Versatile yet economical, these are the most commonly used locknuts. The nylon insert grips the screw to prevent loosening from moderate vibration without damaging threads. However, the insert may become brittle if exposed to high temperatures. These locknuts are reusable a handful of times, but the holding power decreases with each use.
High-Strength Steel — Rated Grade 8, Grade C, or Class 10, these locknuts are about 25% stronger than medium-strength steel nuts. To avoid stripped threads during installation, make sure your screw has a comparable strength rating.
Zinc-Yellow-Chromate-Plated Steel — With a more durable finish than clear zinc plating, these nuts are suitable for most wet and outdoor environments. However, they won't hold up to the harsh chemicals that stainless steel can.
| Thread Direction | Right Hand |
| Hex Nut Profile | Standard |
| Locking Type | Nylon Insert |
| Fastener Strength Rating | High |
| Finished Material | Zinc-Yellow-Chromate-Plated Steel |
| Thread Size | 3/8"-16 |
| Width | 9/16" |
| Height | 29/64" |
| Fastener Strength Grade/Class | SAE Grade 8 |
| Insert Maximum Temperature | 185° F |
| Certificate Form | Digital |
| Certificate Type | Material Certificate with Traceable Lot Number |
| Drive Style | External Hex |
| Nut Type | Hex, Locknut |
| Performance | Vibration Resistant, High Strength |
| System of Measurement | Inch |
| Thread Fit | Unified Standard Class 2B |
| Thread Spacing | Coarse |
| Thread Type | UNC |
| Pack Size | 20 per pack |
| Country of Origin | Taiwan |
| DFARS Compliance | Not Specialty Metals Compliant |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | Not Compliant |
| Schedule B Number | 731816.0000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
