McMaster 9689K12 Wire Ferrule Assortment for 1 Wire, Polypropylene Insulated Barrel, 100 Pieces - KVM Tools Inc.KV9689K12

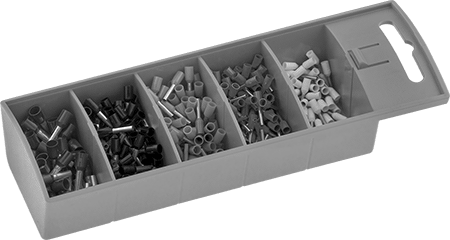

McMaster 9689K12 Wire Ferrule Assortment for 1 Wire, Polypropylene Insulated Barrel, 100 Pieces

UPC: | Harmonization / Schedule B : 8536.90.4000

Country of Origin: Germany | Shipping Weight: 0.18 lbs

$46.32 - $46.32
$46.32
$46.32 - $46.32
$46.32

Keep a variety of ferrule sizes on hand. These ferrules add strength and stability to stranded wire, protecting it from damage. They also make it faster to insert the wire into terminal blocks. Use a crimper (not included) to install wire.

Barrel-insulated ferrules have a plastic cover to prevent short-circuiting with nearby wire.

Application

Power
Electrical Connector Component

Terminal
Terminal Type

Ferrule
Shape

Straight
For Number of Wires

1
Number of Pieces

100
Includes

Wire Ferrules (12-6 AWG)
Compartmented Plastic Case
Pin Length

0.39"- 0.47"
Wire Connection Type

Crimp On
Insulation

Barrel Insulated
Insulation Material

Polypropylene Plastic
Terminal Material

Tin-Plated Copper
Specifications Met

UL Classified, UL Listed, CE Marked, DIN 46228-4
UL File Number

E485383
Maximum Temperature

220° F
Maximum Voltage

600V AC
600V DC
RoHS

RoHS 3 (2015/863/EU) Compliant
REACH

REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant
DFARS

Specialty Metals COTS-Exempt
Country of Origin

Germany
Schedule B

853690.4000
ECCN

EAR99
