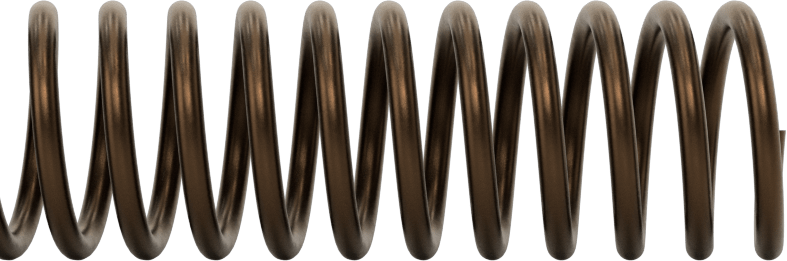

McMaster 9662K44 Compression Spring Stock, Spring Steel, 36" Long, 0.75" OD, 0.59" ID

UPC: | Harmonization / Schedule B : 7320.20.5000

Country of Origin: United States | Shipping Weight: 1 lbs

Original price $49.38 - Original price $49.38
Original price
$49.38
$49.38 - $49.38
Current price $49.38

Always be ready for the perfect fit. These springs are extra long to cut a custom length whenever you need it. Their open ends make cutting easier but prevent them from standing on their own. You'll need to install them in a hole or over a shaft, or grind the ends flat.

Spring Steel — Strong and resilient, but best suited for dry environments since moisture will cause these springs to rust.

Spring Rate — To determine the spring rate of a cut spring, first multiply the spring rate given by the spring's original length, then divide the result by the cut length (in inches).

Material Spring Steel
Length 36"
OD 0.75"
ID 0.59"
Wire Diameter 0.08"
Maximum Load Not Rated
Spring Rate 1.3 lbf/in
End Type Open
Compression Spring Type Straight
Maximum Temperature 250° F
Performance Cut-to-Length
Spring Type Compression
System of Measurement Inch
Temper Rating Spring
Pack Size 1
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
Schedule B Number 732020.5000
USMCA Qualifying Yes
