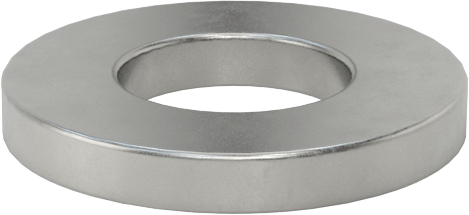

McMaster 96505A116 Steel Oversized Washer, for M8 Screw Size, 8.0 mm ID, 16.0 mm OD, Pack of 100

McMaster 96505A116 Steel Oversized Washer, for M8 Screw Size, 8.0 mm ID, 16.0 mm OD, Pack of 100

Name: McMaster 96505A116 Steel Oversized Washer, for M8 Screw Size, 8.0 mm ID, 16.0 mm OD, Pack of 100
Brand: McMaster-Carr
Price: 55.4 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 7318.16.0085

Country of Origin: | Shipping Weight: 0.44 lbs

$55.40 - $55.40

$55.40

$55.40 - $55.40

$55.40

Cover oversized holes or use these washers as spacers and levelers. Compared to general purpose washers, these have a larger diameter or thickness.

Steel — Best for dry environments since moisture will cause these washers to rust.

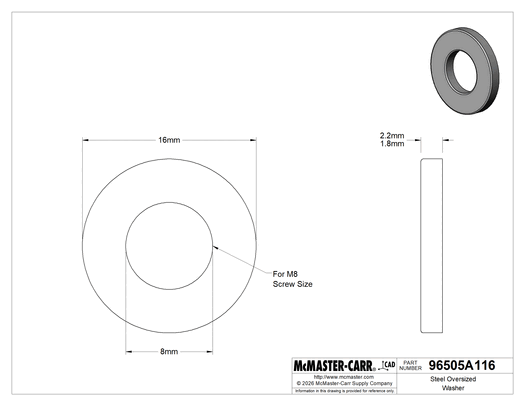

Washer Designation	Oversized
Material	Steel
For Screw Size	M8
ID	8.0 mm
OD	16.0 mm
Thickness	1.8 mm to 2.2 mm
Hardness	Rockwell B76
Specifications Met	DIN 1440
System of Measurement	Metric
Washer Type	Flat
Country of Origin	China, Germany, India
DFARS Compliance	Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	731816.0000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	No
