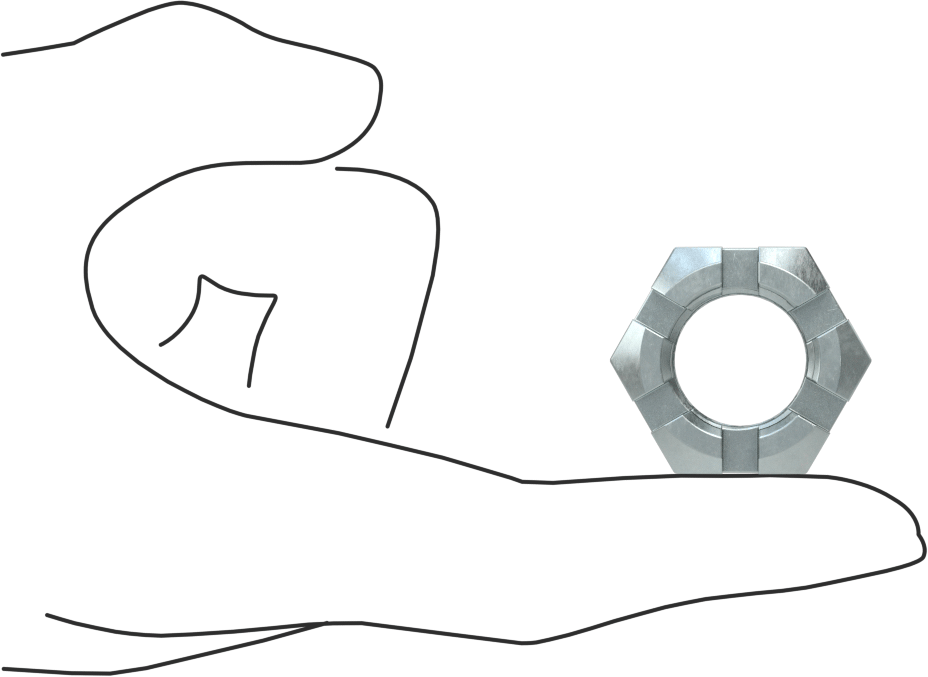

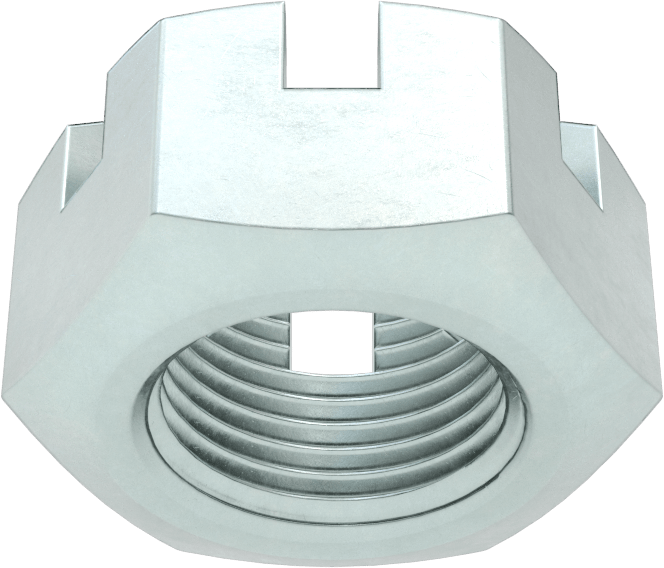

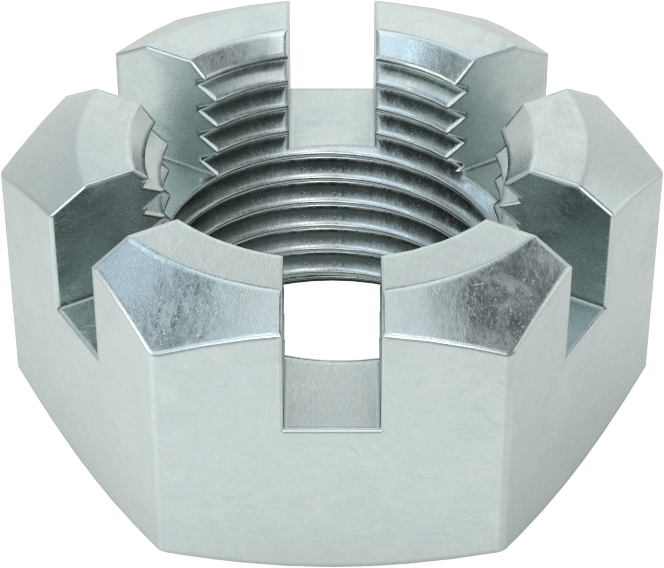

McMaster 95030A270 Low-Strength Steel Locknut, Pack of 10, for Cotter Pins, Zinc-Plated Steel, 3/4"-16 Thread Size
UPC: | Harmonization / Schedule B : 7318.16.0000
Country of Origin: China | Shipping Weight: 1 lbs
UPC: | Harmonization / Schedule B : 7318.16.0000
Country of Origin: China | Shipping Weight: 1 lbs
Use these locknuts to secure rotating parts subjected to mild vibration, such as the wheels on carts and hand trucks. They're not recommended for use on parts exposed to high vibration because the pin can shear under prolonged stress. These nuts are reusable, but you'll need a new cotter pin (not included) with each use.
Low-Strength Steel — Rated Grade 2, Class 6, or lower, these locknuts are about half as strong as medium-strength steel nuts. Use them with screws that have a similar strength rating to avoid stripping threads during installation.
Zinc-Plated Steel — A step up from plain steel, the zinc plating withstands occasional exposure to moisture.
| Thread Direction | Right Hand |
| Hex Nut Profile | Standard |
| Locking Type | Cotter Pin |
| Fastener Strength Rating | Low |
| Finished Material | Zinc-Plated Steel |
| Thread Size | 3/4"-16 |
| Width | 1 1/8" |
| Height | 21/32" |
| For Cotter Pin Diameter | 5/32" |
| Drive Style | External Hex |
| Minimum Slot Width | 0.18" |
| Minimum Slot Depth | 0.265" |
| Nut Type | Hex, Locknut |
| Performance | Vibration Resistant |
| System of Measurement | Inch |
| Thread Fit | Unified Standard Class 2B |
| Thread Spacing | Fine |
| Thread Type | UNF |
| Pack Size | 10 |
| Country of Origin | China, Taiwan |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| Schedule B Number | 731816.0000 |
| USMCA Qualifying | No |
