McMaster 9472K623 Oil - Resistant Aramid/Buna - N Gasket for 6 Pipe Size, ANSI Class 150, 1/8" Thick - KVM Tools Inc.KV9472K623

McMaster 9472K623 Oil-Resistant Aramid/Buna-N Gasket for 6 Pipe Size, ANSI Class 150, 1/8" Thick

McMaster 9472K623 Oil-Resistant Aramid/Buna-N Gasket for 6 Pipe Size, ANSI Class 150, 1/8" Thick

Name: McMaster 9472K623 Oil-Resistant Aramid/Buna-N Gasket for 6 Pipe Size, ANSI Class 150, 1/8" Thick
Brand: McMaster-Carr
Price: 23.75 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 4016.93.0000

Country of Origin: Mexico or United States | Shipping Weight: 0.02 lbs

$23.75 - $23.75

$23.75

$23.75 - $23.75

$23.75

In addition to oil, these blended aramid fiber/Buna-N rubber gaskets resist water and aliphatic hydrocarbons such as ethylene. Also known as ring gaskets, use them with raised-surface pipe flanges; they fit the surface inside the bolt holes and do not interfere with the bolt connection.

Gaskets for ANSI class flanges are sized so all gasket specifications meet ANSI standards.

Gaskets for ANSI Class 150 flanges are compatible with low-pressure pipe flanges.

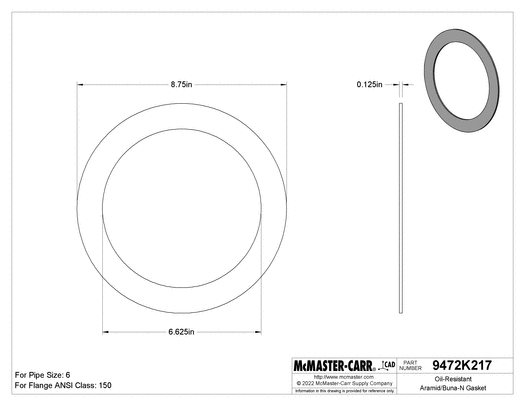

Shape	Ring
For Pipe Size	6
ID	6 5/8 "
OD	8 3/4 "
For Flange ANSI Class	150
Maximum Pressure	1,000 psi
Temperature Range	-100° to 400° F
Hardness	Not Rated
Hardness Rating	Not Rated
Color	Blue
Material	Aramid Fiber/Buna-N Rubber Blend
Backing Type	Plain
Thickness	1/8 in.
RoHS	RoHS 3 (2015/863/EU) Compliant
REACH	REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant
DFARS	Specialty Metals COTS-Exempt
Country of Origin	Mexico or United States
USMCA Qualifying	No
Schedule B	401693.0000
ECCN	EAR99
