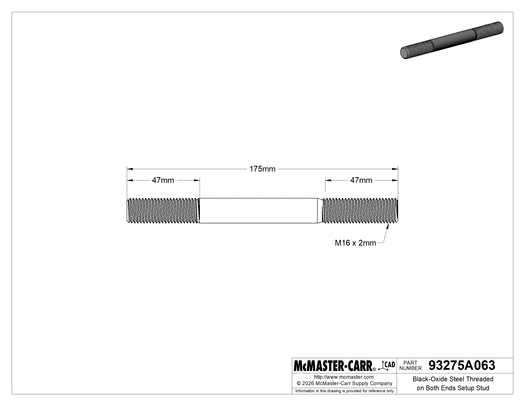

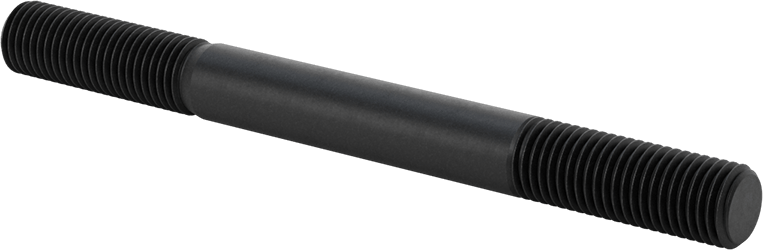

McMaster 93275A063 Black-Oxide Steel Threaded on Both Ends Setup Stud, M16 x 2 mm Thread Size, 47 mm Thread Lengths, 175 mm Long
McMaster 93275A063 Black-Oxide Steel Threaded on Both Ends Setup Stud, M16 x 2 mm Thread Size, 47 mm Thread Lengths, 175 mm Long
McMaster 93275A063 Black-Oxide Steel Threaded on Both Ends Setup Stud, M16 x 2 mm Thread Size, 47 mm Thread Lengths, 175 mm Long
McMaster 93275A063 Black-Oxide Steel Threaded on Both Ends Setup Stud, M16 x 2 mm Thread Size, 47 mm Thread Lengths, 175 mm Long
McMaster 93275A063 Black-Oxide Steel Threaded on Both Ends Setup Stud, M16 x 2 mm Thread Size, 47 mm Thread Lengths, 175 mm Long
McMaster 93275A063 Black-Oxide Steel Threaded on Both Ends Setup Stud, M16 x 2 mm Thread Size, 47 mm Thread Lengths, 175 mm Long
McMaster 93275A063 Black-Oxide Steel Threaded on Both Ends Setup Stud, M16 x 2 mm Thread Size, 47 mm Thread Lengths, 175 mm Long
McMaster 93275A063 Black-Oxide Steel Threaded on Both Ends Setup Stud, M16 x 2 mm Thread Size, 47 mm Thread Lengths, 175 mm Long

McMaster 93275A063 Black-Oxide Steel Threaded on Both Ends Setup Stud, M16 x 2 mm Thread Size, 47 mm Thread Lengths, 175 mm Long

UPC: | Harmonization / Schedule B : 7318.15.5000

Country of Origin: United States | Shipping Weight: 0.05 lbs

$49.85 - $49.85
$49.85
$49.85 - $49.85
$49.85

Known as setup studs, these studs withstand sideways forces better than fully threaded studs because they have a strong unthreaded middle. The unthreaded middle also makes more contact with unthreaded holes, creating better alignment than a fully threaded stud.

Black Oxide — Black-oxide steel studs resist rusting in dry environments.

DIN 939—Studs that meet DIN standards meet dimensional and material requirements. Thread Length (B) includes chamfer on DIN 938 and DIN 939 studs.

Threading Threaded on Both Ends
Material Black-Oxide Steel
Size M16 × 2 mm
Length (A) 47 mm
Length (B) 47 mm
Direction Right Hand
Type UNC
Spacing Coarse
Fit Metric Class 6g
Length 175 mm
Tensile Strength 125,000 psi
Specifications Met DIN 939
Hardness Rockwell C22
System of Measurement Metric
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 731815.5000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying Yes
