McMaster 92865A849 Medium-Strength Grade 5 Steel Hex Head Screw Zinc-Plated, 3/4"-10 Thread Size, 3-1/2" Long, Fully Threaded

UPC: | Harmonization / Schedule B : 7318.15.9000

Country of Origin: Canada | Shipping Weight: 2.69 lbs

Original price $19.35 - Original price $19.35
Original price
$19.35
$19.35 - $19.35
Current price $19.35

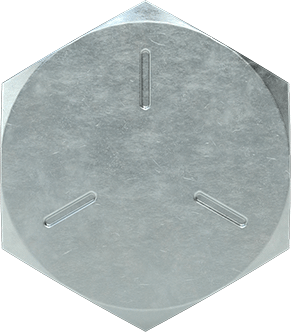

Made from Grade 5 steel, these screws are suitable for fastening most machinery and equipment. Dimensions meet ASME B18.2.1 specifications. Grade 5 steel hex head screws are marked with three radial lines. Length is measured from under the head.

Zinc-plated steel screws resist corrosion in wet environments.

Match the thread spacing of mating components.

Coarse threads are the industry standard; choose these screws if you don’t know the threads per inch.

Screws that meet ASTM A449 or SAE J429 comply with specifications and testing requirements for material quality.

Head Type

Hex

Drive Style

External Hex

System of Measurement

Inch

Thread Direction

Right Hand

Thread Size

3/4"-10

Screw Size Decimal Equivalent

0.75"

Thread Type

UNC

Thread Fit

Class 2A

Length

3 1/2"

Threading

Fully Threaded

Thread Spacing

Coarse

Head



Width

1 1/8"

Height

15/32"

Fastener Strength Grade/Class

Grade 5


Material

Steel

Finish

Zinc Plated

Tensile Strength

120,000 psi

Hardness

Rockwell C25

Specifications Met

ASME B18.2.1, SAE J429

RoHS

RoHS 3 (2015/863/EU) Compliant

REACH

REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant

DFARS

Specialty Metals Compliant (252.225-7009)

Country of Origin

Canada

USMCA Qualifying

No

Schedule B

731815.9000

ECCN

EAR99
