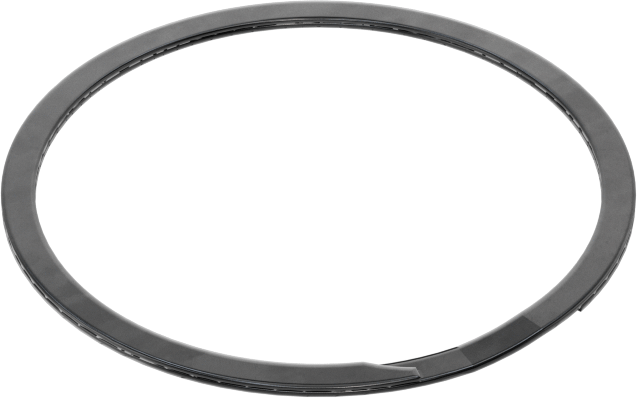

McMaster 92623A325 Spiral External Retaining Ring, for 80 mm OD, 1060-1090 Spring Steel
McMaster 92623A325 Spiral External Retaining Ring, for 80 mm OD, 1060-1090 Spring Steel
McMaster 92623A325 Spiral External Retaining Ring, for 80 mm OD, 1060-1090 Spring Steel
McMaster 92623A325 Spiral External Retaining Ring, for 80 mm OD, 1060-1090 Spring Steel
McMaster 92623A325 Spiral External Retaining Ring, for 80 mm OD, 1060-1090 Spring Steel
McMaster 92623A325 Spiral External Retaining Ring, for 80 mm OD, 1060-1090 Spring Steel
McMaster 92623A325 Spiral External Retaining Ring, for 80 mm OD, 1060-1090 Spring Steel
McMaster 92623A325 Spiral External Retaining Ring, for 80 mm OD, 1060-1090 Spring Steel
McMaster 92623A325 Spiral External Retaining Ring, for 80 mm OD, 1060-1090 Spring Steel
McMaster 92623A325 Spiral External Retaining Ring, for 80 mm OD, 1060-1090 Spring Steel
McMaster 92623A325 Spiral External Retaining Ring, for 80 mm OD, 1060-1090 Spring Steel
McMaster 92623A325 Spiral External Retaining Ring, for 80 mm OD, 1060-1090 Spring Steel
McMaster 92623A325 Spiral External Retaining Ring, for 80 mm OD, 1060-1090 Spring Steel
McMaster 92623A325 Spiral External Retaining Ring, for 80 mm OD, 1060-1090 Spring Steel

McMaster 92623A325 Spiral External Retaining Ring, for 80 mm OD, 1060-1090 Spring Steel

UPC: | Harmonization / Schedule B : 7318.24.0000

Country of Origin: United States | Shipping Weight: 2.25 lbs

$42.29 - $42.29
$42.29
$42.29 - $42.29
$42.29

Coiled so you can install by hand without any tools. The coiling also keeps these rings from flying away during installation. Just insert one end into the groove, then wind the rest of the ring into place.

Ring ID is measured with the ring uninstalled.

Carbon Steel — The go-to choice. These rings have high strength and wear resistance, but they don't resist rust.

2 Turns—Wind two layers into the groove for more load distribution and overall force capacity.

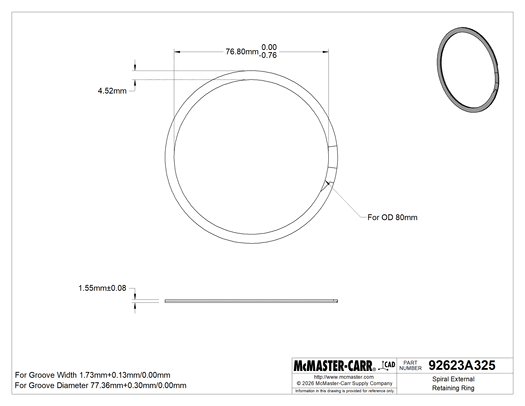

Retaining Ring Type External
Material Carbon Steel
For OD 80 mm
Diameter 77.36 mm
Diameter Tolerance 0 mm to 0.3 mm
Width 1.73 mm
Width Tolerance 0 mm to 0.13 mm
ID 76.8 mm
ID Tolerance -0.76 mm to 0 mm
Thk. 1.55 mm
Thk. Tolerance -0.08 mm to 0.08 mm
Thrust Load Capacity 25,300 lbf
Number of Turns 2
Magnetic Properties Magnetic
Minimum Hardness Not Rated
Performance Easy Install
Retaining Ring Style Spiral
System of Measurement Metric
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 731824.0000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying Yes
