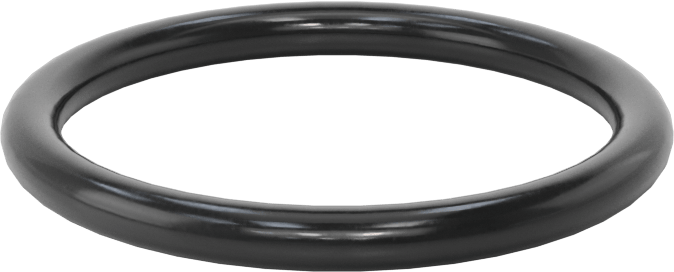

McMaster 9194N147 Chemical-Resistant Viton Fluoroelastomer O-Ring, High-Pressure, 1/8 Width, Dash No. 219, ID 1-5/16" × OD 1-9/16", Pack of 5

McMaster 9194N147 Chemical-Resistant Viton Fluoroelastomer O-Ring, High-Pressure, 1/8 Width, Dash No. 219, ID 1-5/16" × OD 1-9/16", Pack of 5

UPC: | Harmonization / Schedule B : 4016.93.0000

Country of Origin: Mexico | Shipping Weight: 0.05 lbs

$54.18 - $54.18
$54.18
$54.18 - $54.18
$54.18

Made of our hardest Viton® fluoroelastomer, these O-rings can handle sudden pressure changes that would cause softer O-rings to crack or deform. They're often used in compressed air systems or oilfield equipment, such as blowout preventers and wellhead assemblies. These O-rings are tested to NORSOK M-710 standards for rapid gas decompression and extrusion resistance.

Fractional
Width 1/8
ID 1 5/16
OD 1 9/16
Width (Decimal) 0.139"
Dash Number 219
ID (Decimal) 1.296"
OD (Decimal) 1.574"
Hardness Durometer 95A (Hard)
Maximum Pressure 2,100 psi
Specifications Met API Std 6A, NACE TM0187, NORSOK M-710, SAE AS568
Temperature Range -15° F to 400° F
Color Black
Cross Section Shape Round
Material Viton® Fluoroelastomer
Performance Chemical Resistant, High Pressure
System of Measurement Inch
Country of Origin Mexico
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance Not Compliant
Schedule B Number 4016.93.0000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying No
