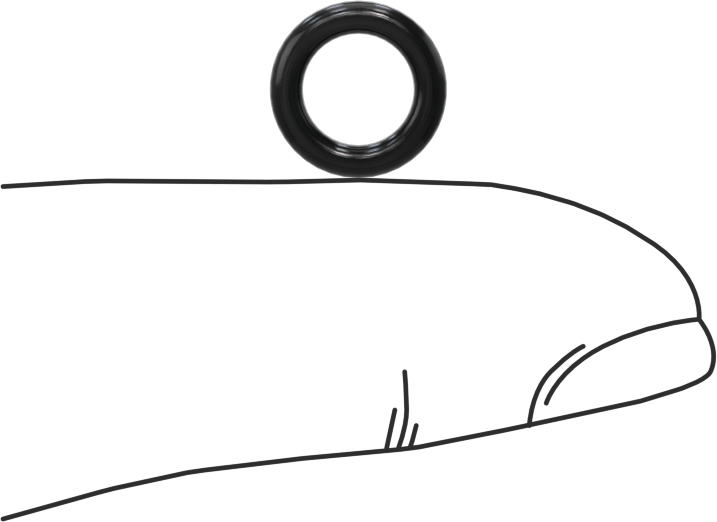

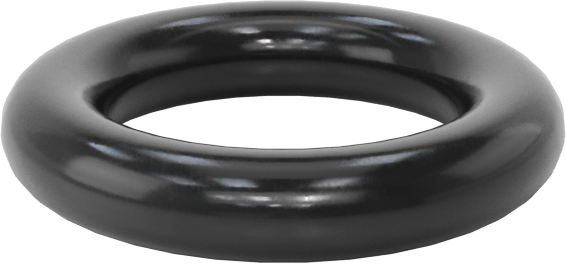

McMaster 9194N111 Chemical-Resistant Viton Fluoroelastomer O-Ring, High-Pressure, 1/16 Width, Dash No. 010, ID 1/4" × OD 3/8", Pack of 5

McMaster 9194N111 Chemical-Resistant Viton Fluoroelastomer O-Ring, High-Pressure, 1/16 Width, Dash No. 010, ID 1/4" × OD 3/8", Pack of 5

UPC: | Harmonization / Schedule B : 4016.93.0000

Country of Origin: Mexico | Shipping Weight: 0.05 lbs

$52.18 - $52.18
$52.18
$52.18 - $52.18
$52.18

Made of our hardest Viton® fluoroelastomer, these O-rings can handle sudden pressure changes that would cause softer O-rings to crack or deform. They're often used in compressed air systems or oilfield equipment, such as blowout preventers and wellhead assemblies. These O-rings are tested to NORSOK M-710 standards for rapid gas decompression and extrusion resistance.

Fractional
Width 1/16
ID 1/4
OD 3/8
Width (Decimal) 0.07"
Dash Number 010
ID (Decimal) 0.239"
OD (Decimal) 0.379"
Hardness Durometer 95A (Hard)
Maximum Pressure 2,100 psi
Specifications Met API Std 6A, NACE TM0187, NORSOK M-710, SAE AS568
Temperature Range -15° F to 400° F
Color Black
Cross Section Shape Round
Material Viton® Fluoroelastomer
For Use With Diluted Salt Solutions
Transmission Fluid
Animal Oil
Benzene
Boric Acid
Butyl Alcohol
Calcium Hydroxide
Citric Acid
Ethylene Glycol
Glycerin
Grease
Hydraulic Oil
Isopropyl Alcohol
Mineral Oil
Motor Oil
Petroleum
Phosphoric Acid
Sodium Bicarbonate (Baking Soda)
Vegetable Oil
Water
Performance Chemical Resistant, High Pressure
System of Measurement Inch
Country of Origin Mexico
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance Not Compliant
Schedule B Number 4016.93.0000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying No
