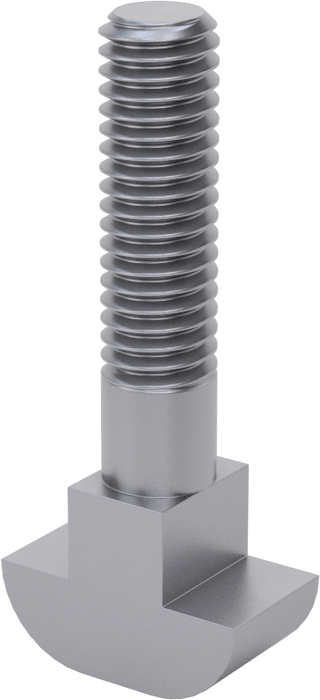

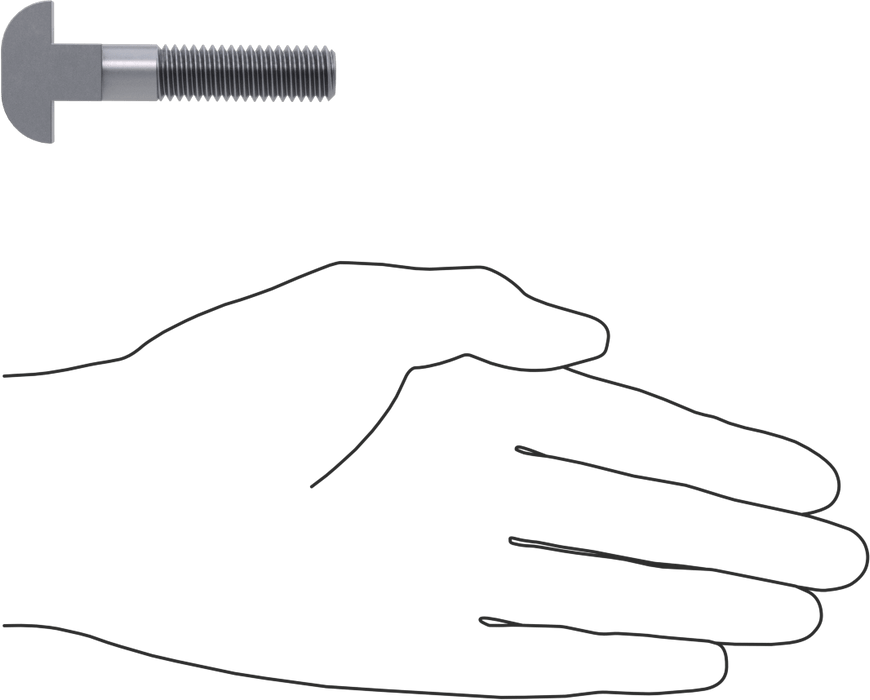

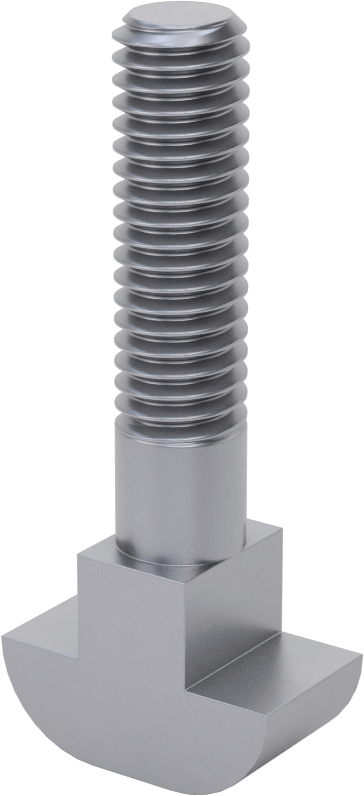

McMaster 91523A292 Steel Machined Neck T-Slot Bolt, M16×2 mm, 60 mm Long, for 16 mm Slot, Class 8.8, DIN 186

McMaster 91523A292 Steel Machined Neck T-Slot Bolt, M16×2 mm, 60 mm Long, for 16 mm Slot, Class 8.8, DIN 186

UPC: | Harmonization / Schedule B : 7318.15.2000

Country of Origin: Germany | Shipping Weight: 0.5 lbs

$79.64 - $79.64
$79.64
$79.64 - $79.64
$79.64

For quicker setups than a separate T-slot nut and stud, slide these bolts into T-slot tracks on machine tool tables.

Machined Neck — Flat surfaces on the neck fit securely in the T-slot so the bolt doesn't wobble.

Neck Style Machined
Material Steel
For Slot Width 16 mm
Threading Partially Threaded
Length 60 mm
Thread Length 38 mm
Thread Size M16 × 2 mm
Head
Length 30 mm
Width 16 mm
Height 10.5 mm
Minimum Tensile Strength 120,000 psi
Fastener Strength Grade/Class Class 8.8
Specifications Met DIN 186
Fastener Head Type T-Slot
Minimum Hardness Rockwell C20
System of Measurement Metric
Thread Fit Metric Class 6g
Country of Origin Germany
DFARS Compliance Not Specialty Metals Compliant
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 7318.15.2000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying No
