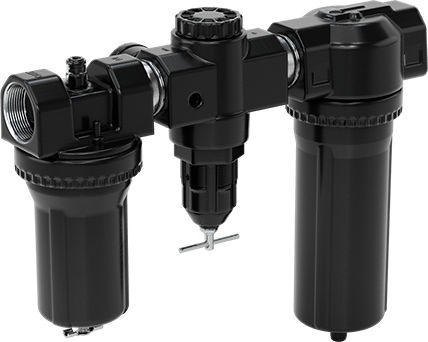

McMaster 9140N14 Compressed Air Filter/Regulator/Lubricator, Inline with Aluminum Bowl, 1-1/2 NPT Female

UPC: | Harmonization / Schedule B : 8481.10.0040

Country of Origin: United States | Shipping Weight: 25.00 lb

Original price $1,708.75 - Original price $1,708.75
Original price
$1,708.75
$1,708.75 - $1,708.75
Current price $1,708.75

A filter, regulator, and lubricator combined, these FRLs provide clean, lubricated compressed air at your required pressure. The regulator is relieving, so it will exhaust when the downstream pressure exceeds the set pressure.

Inline Components — Inline FRLs are the standard design. Each part can be replaced or repaired on its own, which reduces maintenance costs.

Aluminum Bowl — Aluminum and zinc alloy bowls are stronger than plastic bowls, so they won't crack or shatter if they're dropped.

Automatic Drain — Bowls with an automatic drain periodically release condensate into the air, eliminating the need for manual emptying.

Inlet/Outlet Connection Threaded, 1-1/2 NPT Female
Pressure Adjustability Adjustable
Component Configuration Inline
Bowl Material Aluminum
Bowl Type Opaque with Sight Glass
Drain Type Automatic
Pipe Size (Inlet/Outlet) 1 1/2
Maximum Flow Rate @ Pressure 450 scfm @ 100 psi
Maximum Pressure 200 psi
Removes Particle Size Down To 5 μm
Pressure Regulation Range 0 psi to 150 psi
Lubricant Capacity 35 fl. oz.
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
Schedule B Number 848110.0040
USMCA Qualifying No
