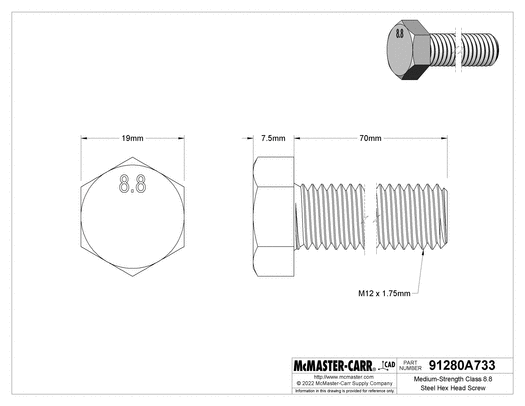

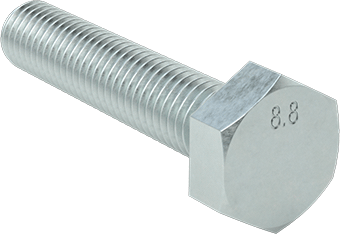

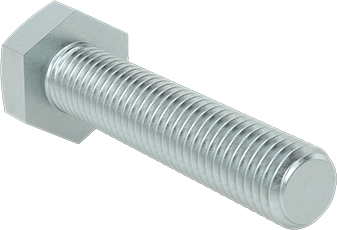

McMaster 91280A733 Medium-Strength Class 8.8 Steel Hex Head Screw Zinc-Plated, M12 x 1.75 mm Thread, 70 mm Long, Fully Threaded PK10
UPC: | Harmonization / Schedule B : 7318.15.9000
Country of Origin: Canada | Shipping Weight: 3.748 lbs
UPC: | Harmonization / Schedule B : 7318.15.9000
Country of Origin: Canada | Shipping Weight: 3.748 lbs
These Class 8.8 steel screws are suitable for fastening most machinery and equipment. Dimensions meet ISO (formerly DIN) or DIN specifications. Length is measured from under the head.
Zinc-plated steel screws resist corrosion in wet environments.
Match the thread spacing of mating components.
Coarse threads are the industry standard; choose these screws if you don’t know the pitch.
Head Type
|
Hex |
Drive Style
|
External Hex |
System of Measurement
|
Metric |
Thread Direction
|
Right Hand |
Thread Size
|
M12 |
Thread Pitch
|
1.75 mm |
Thread Type
|
Metric |
Thread Fit
|
Class 6h |
Length
|
70 mm |
Threading
|
Fully Threaded |
Thread Spacing
|
Coarse |
Head
|
|
Width
|
19 mm |
Height
|
7.5 mm |
Fastener Strength Grade/Class
|
Class 8.8 |
Material
|
Steel |
Finish
|
Zinc Plated |
Tensile Strength
|
110,000 psi |
Hardness
|
Rockwell C21 |
Specifications Met
|
DIN 933, ISO 898 |
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
REACH
|
REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
DFARS
|
Specialty Metals Compliant (252.225-7009) |
Country of Origin
|
Canada |
USMCA Qualifying
|
No |
Schedule B
|
731815.9000 |
ECCN
|
EAR99 |
