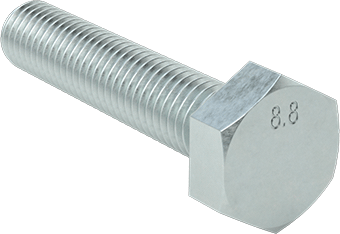

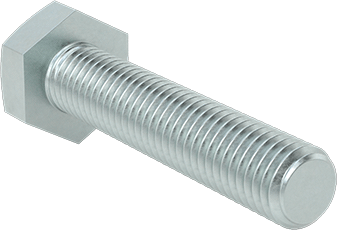

McMaster 91280A642 Medium-Strength Class 8.8 Steel Hex Head Screw Zinc-Plated, M10 x 1.5 mm Thread, 50 mm Long PK25
UPC: | Harmonization / Schedule B : 7318.15.9000
Country of Origin: Canada | Shipping Weight: 3.99 lbs
UPC: | Harmonization / Schedule B : 7318.15.9000
Country of Origin: Canada | Shipping Weight: 3.99 lbs
These Class 8.8 steel screws are suitable for fastening most machinery and equipment. Dimensions meet ISO (formerly DIN) or DIN specifications. Length is measured from under the head.
Zinc-plated steel screws resist corrosion in wet environments.
Match the thread spacing of mating components.
Coarse threads are the industry standard; choose these screws if you don’t know the pitch.
|
Head Type
|
Hex |
|
Drive Style
|
External Hex |
|
System of Measurement
|
Metric |
|
Thread Direction
|
Right Hand |
|
Thread Size
|
M10 |
|
Thread Pitch
|
1.5 mm |
|
Thread Type
|
Metric |
|
Thread Fit
|
Class 6h |
|
Length
|
50 mm |
|
Threading
|
Fully Threaded |
|
Thread Spacing
|
Coarse |
|

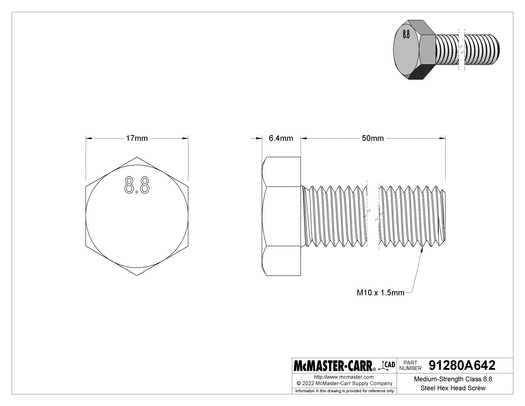

Head
|
|
|
Width
|
17 mm |
|
Height
|
6.4 mm |
|
Fastener Strength Grade/Class
|
Class 8.8 |
|
Material
|
Steel |
|
Finish
|
Zinc Plated |
|
Tensile Strength
|
110,000 psi |
|
Hardness
|
Rockwell C21 |
|
Specifications Met
|
DIN 933, ISO 898 |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
|
DFARS
|
Specialty Metals Compliant (252.225-7009) |
|
Country of Origin
|
Canada |
|
USMCA Qualifying
|
No |
|
Schedule B
|
731815.9000 |
|
ECCN
|
EAR99 |
