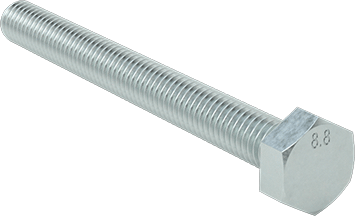

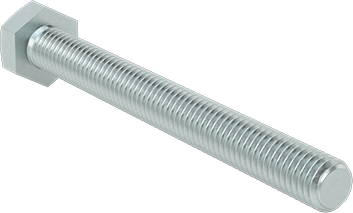

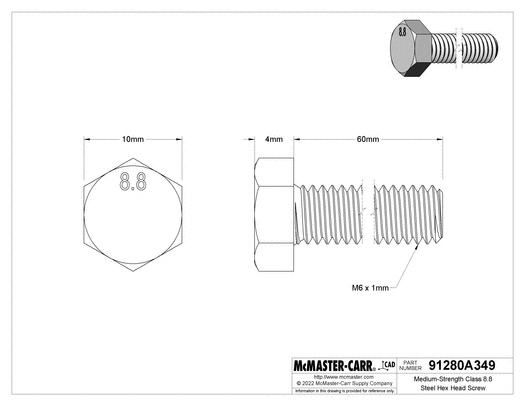

McMaster 91280A349 Medium-Strength Class 8.8 Steel Hex Head Screw Zinc-Plated, M6 x 1 mm Thread, 60 mm Long, Fully Threaded PK50
UPC: | Harmonization / Schedule B : 7318.15.9000
Country of Origin: China | Shipping Weight: 2.86 lbs
UPC: | Harmonization / Schedule B : 7318.15.9000
Country of Origin: China | Shipping Weight: 2.86 lbs
These Class 8.8 steel screws are suitable for fastening most machinery and equipment. Dimensions meet ISO (formerly DIN) or DIN specifications. Length is measured from under the head.
Zinc-plated steel screws resist corrosion in wet environments.
Match the thread spacing of mating components.
Coarse threads are the industry standard; choose these screws if you don’t know the pitch.
Screws that meet SAE J1199 comply with specifications for material standards.
Head Type
|
Hex |
Drive Style
|
External Hex |
System of Measurement
|
Metric |
Thread Direction
|
Right Hand |
Thread Size
|
M6 |
Thread Pitch
|
1 mm |
Thread Type
|
Metric |
Thread Fit
|
Class 6h |
Length
|
60 mm |
Threading
|
Fully Threaded |
Thread Spacing
|
Coarse |
Head
|
|
Width
|
10 mm |
Height
|
4 mm |
Fastener Strength Grade/Class
|
Class 8.8 |
Material
|
Steel |
Finish
|
Zinc Plated |
Tensile Strength
|
110,000 psi |
Hardness
|
Rockwell C21 |
Specifications Met
|
ISO 4017, DIN 933, SAE J1199, ISO 898 |
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
REACH
|
REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
DFARS
|
Not Specialty Metals Compliant |
Country of Origin
|
Peoples Republic of China |
Schedule B
|
731815.9000 |
ECCN
|
EAR99 |
