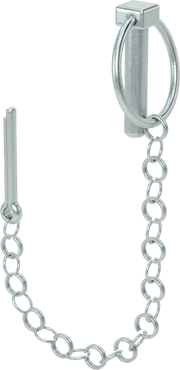

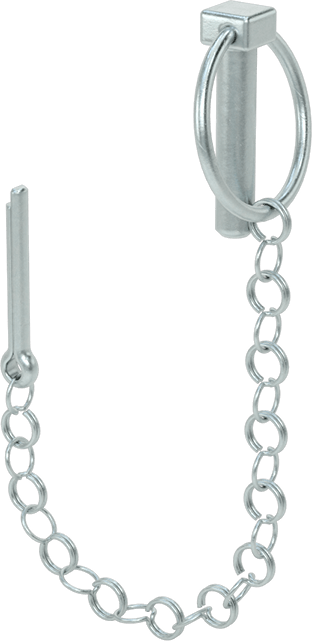

McMaster 90170A227 Linch Pin with Chain and Cotter Pin, 5/16" Diameter, Pack of 5

McMaster 90170A227 Linch Pin with Chain and Cotter Pin, 5/16" Diameter, Pack of 5

Name: McMaster 90170A227 Linch Pin with Chain and Cotter Pin, 5/16" Diameter, Pack of 5
Brand: McMaster-Carr
Price: 65.76 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 7318.29.0000

Country of Origin: India | Shipping Weight: 0.05 lbs

$65.76 - $65.76

$65.76

$65.76 - $65.76

$65.76

Slide the pin through a hole then snap the ring down to lock these pins in place. Also known as click pins. Use them to secure clevis pins and shafts to keep components in place. Attach pins that have a chain to your work to keep them from getting lost.

Zinc-Yellow-Chromate-Plated Carbon Steel—Zinc-yellow-chromate-plated carbon steel pins have good strength and some corrosion resistance.

Includes	Chain and Cotter Pin
Finish	Zinc Yellow-Chromate Plated
Material	Carbon Steel

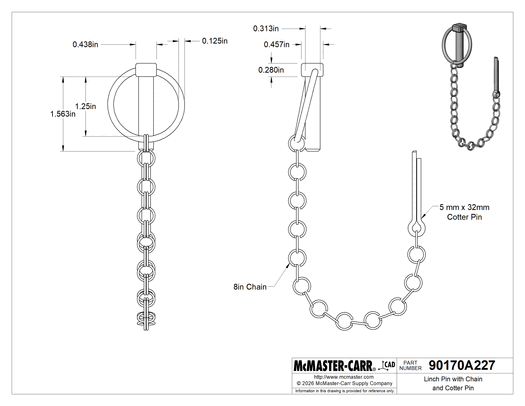

Diameter	5/16"
Usable Length	1 1/4"
Length	1 9/16"
Minimum Hardness	Rockwell B81
Chain Material	Zinc Yellow-Chromate-Plated Steel
Cotter Pin Material	Zinc Yellow-Chromate-Plated Steel
Cotter Pin Type	Linch
Pin Type	Cotter
System of Measurement	Inch
Country of Origin	India
DFARS Compliance	Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	Not Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	731829.0000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	No
