McMaster 8991A75 Pipe Size Chart/Ruler for 6" - 30" and 2 mm - 77 cm Pipe OD - KVM Tools Inc.KV8991A75

McMaster 8991A75 Pipe Size Chart/Ruler for 6"-30" and 2 mm-77 cm Pipe OD

UPC: | Harmonization / Schedule B : 9017.80.0000

Country of Origin: United States | Shipping Weight: 0.55 lbs

$94.48 - $94.48
$94.48
$94.48 - $94.48
$94.48

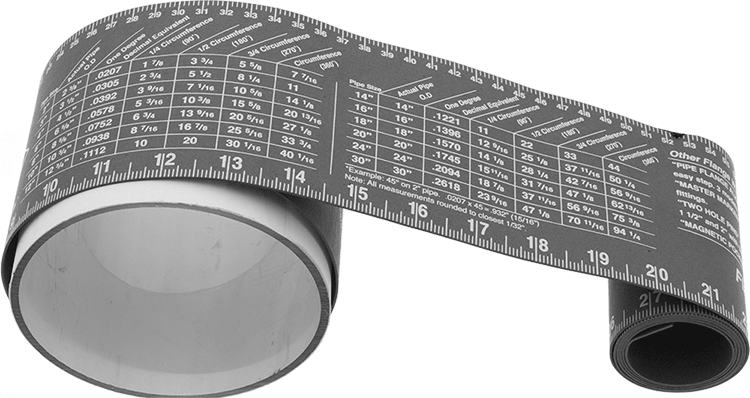

Measure outer diameter and mark lines around pipe. A pipe size conversion chart is printed on these chart/rulers. They’re fiber-reinforced rubber for grease, oil, gasoline, and salt water resistance.

Material

Rubber
For Pipe OD

6" to 30", 2 mm to 77 cm
Length

120"
Width

5 1/4"
Thickness

3/64"
Measuring Length

36"
Graduations (Numeric Graduations)

1/16" (1"), 2 mm (1 cm)
Color

Gray
Graduation Color

White
Maximum Temperature

360° F
For System of Measurement

Inch/Metric
For Use With

Pipe
Orientation

Horizontal
Country of Origin

United States
DFARS Compliance

Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)

EAR99
REACH Compliance

Not Compliant
RoHS Compliance

RoHS 3 (2015/863/EU) Compliant
Schedule B Number

901780.0000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying
 Yes
