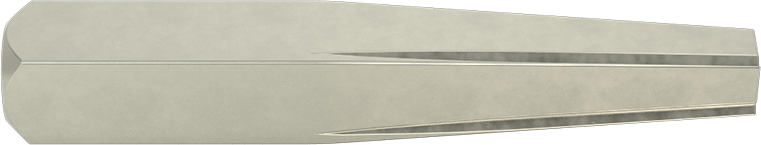

McMaster 8289A39 Extractor for Soft Material and Thin-Wall Parts, for 1.23"-1.37" Screw Thread Diameter
McMaster 8289A39 Extractor for Soft Material and Thin-Wall Parts, for 1.23"-1.37" Screw Thread Diameter
McMaster 8289A39 Extractor for Soft Material and Thin-Wall Parts, for 1.23"-1.37" Screw Thread Diameter
McMaster 8289A39 Extractor for Soft Material and Thin-Wall Parts, for 1.23"-1.37" Screw Thread Diameter
McMaster 8289A39 Extractor for Soft Material and Thin-Wall Parts, for 1.23"-1.37" Screw Thread Diameter
McMaster 8289A39 Extractor for Soft Material and Thin-Wall Parts, for 1.23"-1.37" Screw Thread Diameter

McMaster 8289A39 Extractor for Soft Material and Thin-Wall Parts, for 1.23"-1.37" Screw Thread Diameter

UPC: | Harmonization / Schedule B : 8205.59.5560

Country of Origin: United States | Shipping Weight: 0.74 lbs

$74.71 - $74.71
$74.71
$74.71 - $74.71
$74.71

The tapered wedge shape of these extractors won’t expand the broken part, making it easier to remove. After drilling, tap in with a hammer and turn. The part will back out without damaging the threads around it.

For Thread Direction Right Hand, Left Hand
Thread Diameter 1.23" to 1.37"
Size 1 1/4" to 1 3/8", M33
For Pipe Size 3/4
Use with Drill Bit Size 13/16"
Overall Length 5 3/8"
Flute Type Straight
Turns With Wrench
Material Steel
For Extracting Screws and Bolts, Threaded Studs, Threaded Rods, Pipe
Sold As Individual
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance Not Compliant
Schedule B Number 820559.9000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying No
