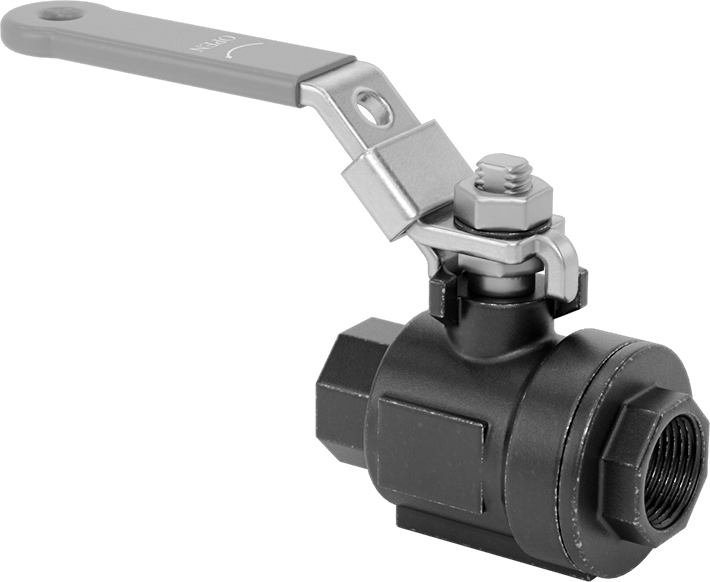

McMaster 8196N49 Threaded On/Off Valve, Steel with Lockable Lever Handle, 3/4 NPT Female x NPT Female

McMaster 8196N49 Threaded On/Off Valve, Steel with Lockable Lever Handle, 3/4 NPT Female x NPT Female

UPC: | Harmonization / Schedule B : 8481.80.3070

Country of Origin: Taiwan | Shipping Weight: 3.15 lbs

$178.49 - $178.49
$178.49
$178.49 - $178.49
$178.49

Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency.

Use these valves in general purpose applications, such as those with water, oil, air, and inert gas.

Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.

Lever handles give you the most leverage for quickly opening and closing valves with minimal effort.

Pipe Size 3/4
Flow Coefficient (Cv) 40
Maximum Pressure 1000 psi @ 100° F
Maximum Steam Pressure 200 psi @ 350° F
Temperature Range -20° to 500° F
Vacuum Rating 29.9 in. of Hg
Port Type Full

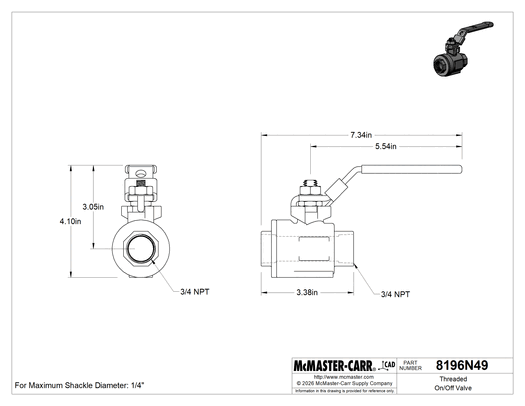

End-to-End Length 3 3/8"
Valve Function On/Off
Valve Type Ball
Activation Manual
Valve Operation Handle
Handle Style Lever
Handle Type Lockable
Fitting Type Connector
Connection Type Pipe
Connection Style Threaded
Gender Female × Female
Thread Type NPT
For Use With Air, Argon, Helium, Krypton, Neon, Oil, Steam, Water, Xenon
Body Material Steel
Ball Material 316 Stainless Steel
Seal Material PTFE Plastic
Seat Material PTFE Plastic
Shape Straight
For Maximum Shackle Diameter 1/4"
Height 4 1/8"
Length 7 5/16"
Chemical Resistance (Excellent) Air, Argon, Helium, Krypton, Neon, Oil, Steam, Water, Xenon
Warning Message Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency.
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant
DFARS Specialty Metals COTS-Exempt
Country of Origin Taiwan
Schedule B 848180.3070
ECCN EAR99
