McMaster 7564K731 High-Temperature Heat-Shrink PTFE Tubing, for 8 Wire Gauge, 0.24" ID Before Shrinking, 4 Feet Long
McMaster 7564K731 High-Temperature Heat-Shrink PTFE Tubing, for 8 Wire Gauge, 0.24" ID Before Shrinking, 4 Feet Long
McMaster 7564K731 High-Temperature Heat-Shrink PTFE Tubing, for 8 Wire Gauge, 0.24" ID Before Shrinking, 4 Feet Long
McMaster 7564K731 High-Temperature Heat-Shrink PTFE Tubing, for 8 Wire Gauge, 0.24" ID Before Shrinking, 4 Feet Long
McMaster 7564K731 High-Temperature Heat-Shrink PTFE Tubing, for 8 Wire Gauge, 0.24" ID Before Shrinking, 4 Feet Long
McMaster 7564K731 High-Temperature Heat-Shrink PTFE Tubing, for 8 Wire Gauge, 0.24" ID Before Shrinking, 4 Feet Long
McMaster 7564K731 High-Temperature Heat-Shrink PTFE Tubing, for 8 Wire Gauge, 0.24" ID Before Shrinking, 4 Feet Long
McMaster 7564K731 High-Temperature Heat-Shrink PTFE Tubing, for 8 Wire Gauge, 0.24" ID Before Shrinking, 4 Feet Long
McMaster 7564K731 High-Temperature Heat-Shrink PTFE Tubing, for 8 Wire Gauge, 0.24" ID Before Shrinking, 4 Feet Long
McMaster 7564K731 High-Temperature Heat-Shrink PTFE Tubing, for 8 Wire Gauge, 0.24" ID Before Shrinking, 4 Feet Long
McMaster 7564K731 High-Temperature Heat-Shrink PTFE Tubing, for 8 Wire Gauge, 0.24" ID Before Shrinking, 4 Feet Long
McMaster 7564K731 High-Temperature Heat-Shrink PTFE Tubing, for 8 Wire Gauge, 0.24" ID Before Shrinking, 4 Feet Long
McMaster 7564K731 High-Temperature Heat-Shrink PTFE Tubing, for 8 Wire Gauge, 0.24" ID Before Shrinking, 4 Feet Long
McMaster 7564K731 High-Temperature Heat-Shrink PTFE Tubing, for 8 Wire Gauge, 0.24" ID Before Shrinking, 4 Feet Long

McMaster 7564K731 High-Temperature Heat-Shrink PTFE Tubing, for 8 Wire Gauge, 0.24" ID Before Shrinking, 4 Feet Long

UPC: | Harmonization / Schedule B : 3926.90.9989

Country of Origin: United States | Shipping Weight: 0.04 lbs

$110.25 - $110.25
$110.25
$110.25 - $110.25
$110.25

Use this tubing in applications where temperatures reach up to 500° F. It’s often used to insulate electronic components. Tubing resists abrasion and chemicals. Semi-rigid, it bends only slightly.

Dielectric Strength — Dielectric strength is the maximum voltage a material can handle before it starts to breakdown. The higher the dielectric strength of a material, the better it is for preventing electricity, heat, or signal from dissipating from wire and cable.

Material PTFE
Shrink Ratio 2:1
Length 4 ft.

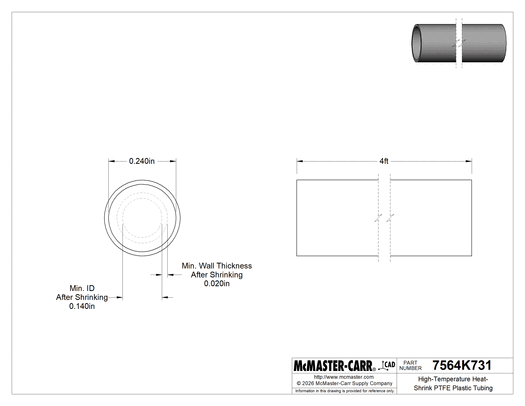

Before Shrinking 0.24"
Minimum After Shrinking 0.14"
Minimum Wall Thickness After Shrinking 0.02"
For Wire Gauge 8
Dielectric Strength 455 V/mil
Shrink Temperature 660° F
Temperature Range -325° F to 500° F
Flexibility Semi-Rigid
Color Semi-Clear White
Heat-Shrink Tubing Type Tubing
Performance Chemical Resistant, Abrasion Resistant, High Temperature
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 392690.9988
U.S.–Mexico–Canada Agreement (USMCA) Qualifying No
