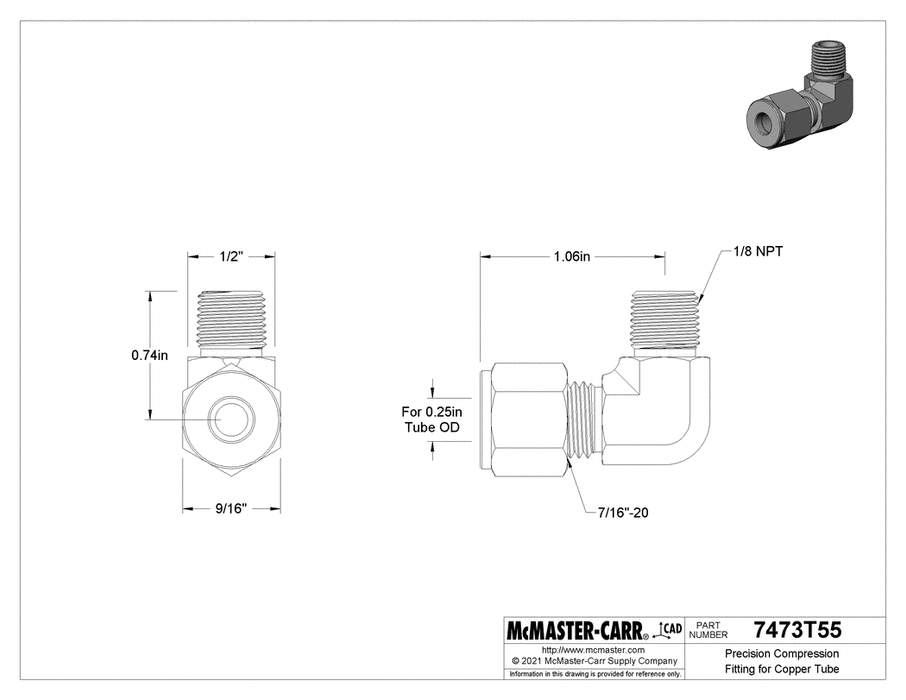

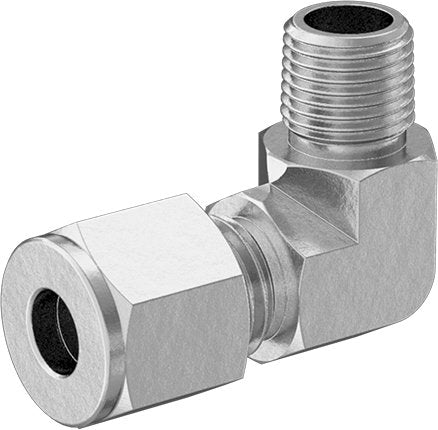

McMaster 7473T55 90 Degree Elbow Adapter for 1/4" Tube x 1/8 NPT Male
UPC: | Harmonization (Schedule B): 741220.0000
Made to tighter tolerances than other compression fittings, these are designed for high-precision applications. They are also known as instrumentation fittings and flareless fittings. They come with a nut and a single sleeve (ferrule). The sleeve bites into tubing as you tighten the nut to create a strong seal. The nut has a molybdenum disulfide coating that acts as a lubricant for easy installation. Fittings are brass for good corrosion resistance.
|
Shape
|
90° Elbow |
|
Type
|
Adapter |
|
For Use With
|
Air, Cutting Oil, Ethyl Alcohol, Fuel Oil, Gasoline, Hydraulic Fluid, Isopropyl Alcohol, Mineral Oil, Natural Gas, Steam, Water |
|
Tube Connection
|
|
|
Connection Style
|
Compression |
|
Compression Connection Type
|
Standard |
|
Gender
|
Female |
|
Dash Size
|
04 |
|
For Tube
|
|
|
OD
|
1/4" |
|
Wall Thickness
|
0.035" |
|
Pipe Connection
|
|
|
Connection Style
|
Threaded |
|
Gender
|
Male |
|
Thread Type
|
NPT |
|
Dash Size
|
02 |
|
Pipe Size
|
1/8 |
|
Material
|
Brass |
|
Nut Material
|
Brass |
|
Nut Finish
|
Molybdenum Disulfide Coated |
|
Sleeve Material
|
Brass |
|
Maximum Pressure
|
1,200 psi @ 72° F |
|
Maximum Vacuum
|
Not Rated |
|
Temperature Range
|
-40° to 350° F |
|
Compatible With
|
Parker CPI |
|
For Tube Material
|
Copper |
|
For Tube Specifications Met
|
ASTM B68, ASTM B75, ASTM B88 |
|
For Tube Fabrication
|
Seamless |
|
RoHS
|
RoHS 3 (2015/863/EU) compliant with exemption 6(c) - Lead in copper alloy |
|
REACH
|
Not Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
United States |
|
USMCA Qualifying
|
No |
|
Schedule B
|
741220.0000 |
|
ECCN
|
EAR99 |
