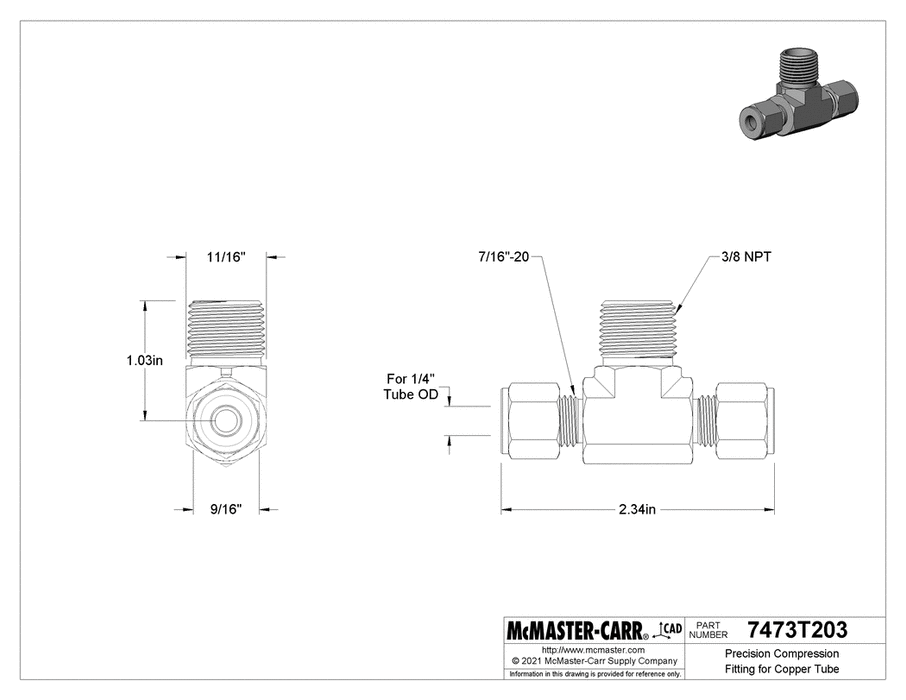

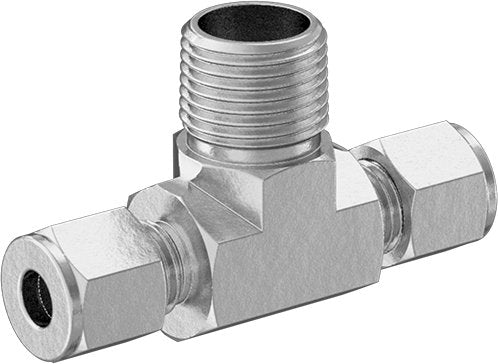

McMaster 7473T203 Inline Tee Adapter for 1/4" Tube OD x 3/8 NPT Male

UPC: | Harmonization (Schedule B): 7412.20.0000

SKU KV7473T203
Original price $35.88 - Original price $35.88
Original price
$35.88
$35.88 - $35.88
Current price $35.88

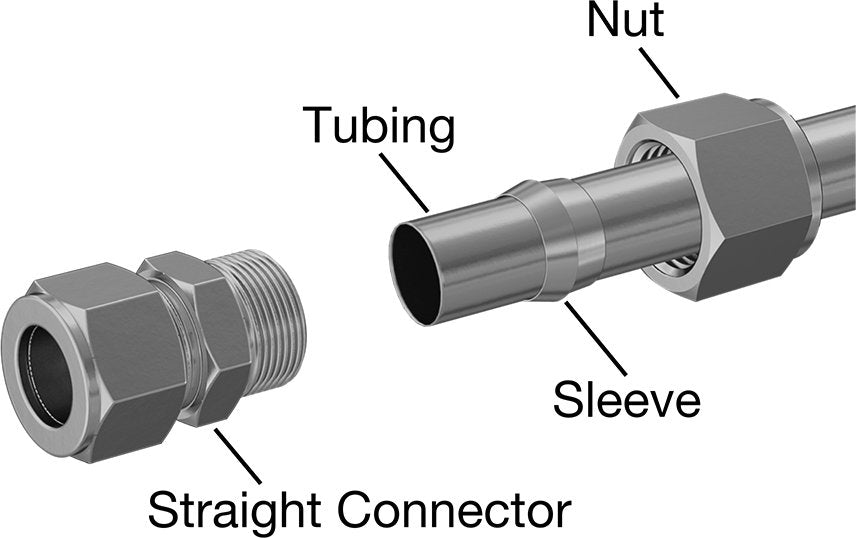

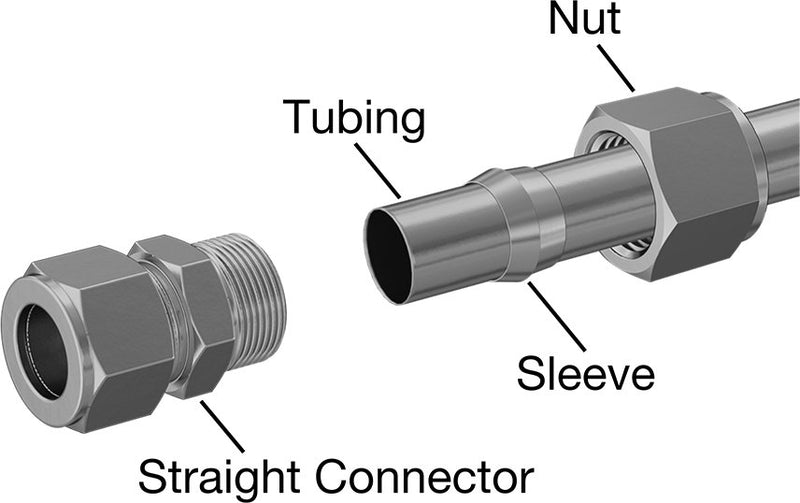

Made to tighter tolerances than other compression fittings, these are designed for high-precision applications. They are also known as instrumentation fittings and flareless fittings. They come with a nut and a single sleeve (ferrule). The sleeve bites into tubing as you tighten the nut to create a strong seal. The nut has a molybdenum disulfide coating that acts as a lubricant for easy installation. Fittings are brass for good corrosion resistance.

Inline tees are also known as branch tees.

Shape

Tee

Type

Adapter

Tee Style

Inline

For Use With

Air, Cutting Oil, Ethyl Alcohol, Fuel Oil, Gasoline, Hydraulic Fluid, Isopropyl Alcohol, Mineral Oil, Natural Gas, Steam, Water

Tube Connection



Connection Style

Compression

Compression Connection Type

Standard

Gender

Female

Dash Size

04

For Tube



OD

1/4"

Wall Thickness

0.028"

Pipe Connection



Connection Style

Threaded

Gender

Male

Thread Type

NPT


Dash Size

06

Pipe Size

3/8


Material

Brass

Nut Material

Brass

Nut Finish

Molybdenum Disulfide Coated

Sleeve Material

Brass

Maximum Pressure

1,200 psi @ 72° F

Maximum Vacuum

Not Rated

Temperature Range

-40° to 350° F

Compatible With

Parker CPI

For Tube Material

Copper

For Tube Specifications Met

ASTM B68, ASTM B75, ASTM B88

For Tube Fabrication

Seamless

RoHS

RoHS 3 (2015/863/EU) compliant with exemption 6(c) - Lead in copper alloy

REACH

Not Compliant

DFARS

Specialty Metals COTS-Exempt

Country of Origin

United States

USMCA Qualifying

No

Schedule B

741220.0000

ECCN

EAR99
