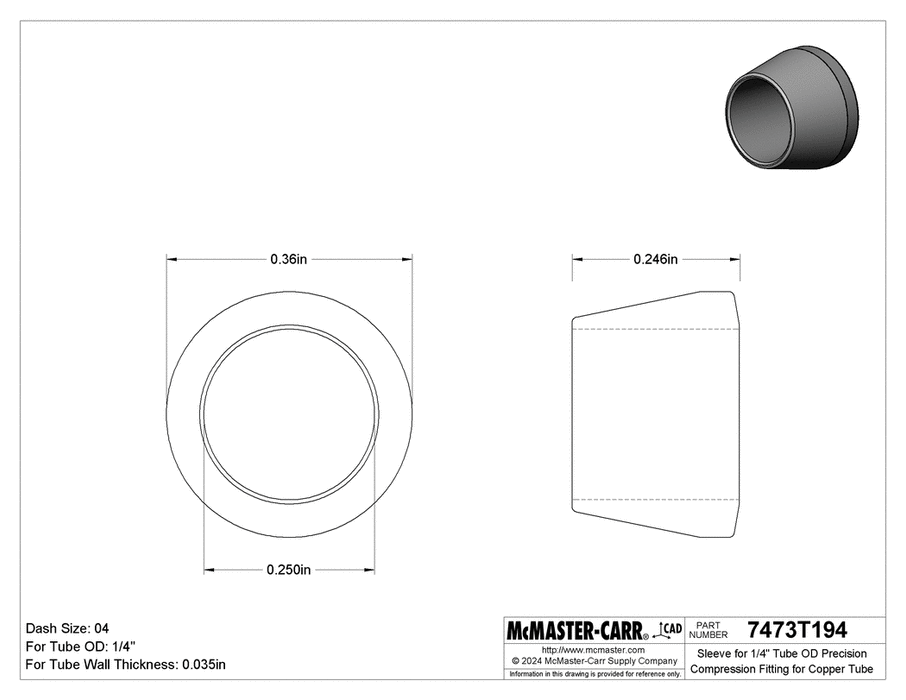

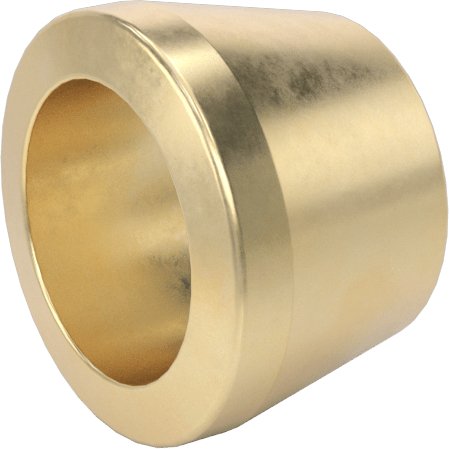

McMaster 7473T194 Sleeve for 1/4" Tube OD Precision Compression Fitting for Copper Tube
UPC: | Harmonization (Schedule B): 7412.20.0000

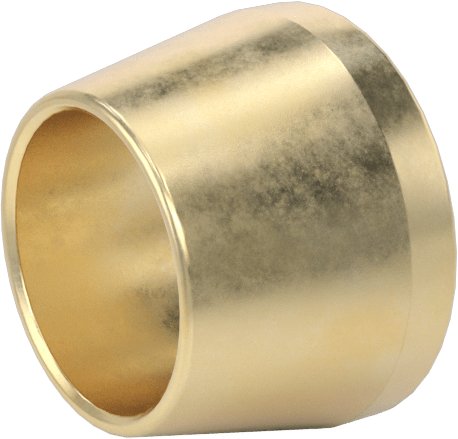

Use these sleeves with precision compression nuts and fittings to create a strong seal on copper tubing. Made to tighter tolerances than other sleeves, they are designed for high-precision applications. Sleeves are brass for good corrosion resistance. They are also known as ferrules.
|
Shape
|
Straight |
|
Type
|
Sleeve |
|
For Use With
|
Air, Cutting Oil, Ethyl Alcohol, Fuel Oil, Gasoline, Hydraulic Fluid, Isopropyl Alcohol, Mineral Oil, Natural Gas, Steam, Water |
|
Tube Connection
|
|
|
Connection Style
|
Compression |
|
Compression Connection Type
|
Standard |
|
Dash Size
|
04 |
|
For Tube
|
|
|
OD
|
1/4" |
|
Wall Thickness
|
0.035" |
|
Sleeve Material
|
Brass |
|
Maximum Pressure
|
1,200 psi @ 72° F |
|
Maximum Vacuum
|
Not Rated |
|
Temperature Range
|
-40° to 350° F |
|
Length
|
1/4" |
|
Compatible With
|
Parker CPI |
|
For Tube Material
|
Copper |
|
For Tube Specifications Met
|
ASTM B68, ASTM B75, ASTM B88 |
|
For Tube Fabrication
|
Seamless |
|
RoHS
|
RoHS 3 (2015/863/EU) compliant with exemption 6(c) - Lead in copper alloy |
|
REACH
|
Not Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
United States |
|
USMCA Qualifying
|
No |
|
Schedule B
|
741220.0000 |
|
ECCN
|
EAR99 |
